PE GYTS 12 Core Optical Fiber Cable , Outdoor OS2 Single Mode Fiber Cable

China PE GYTS 12 Core Optical Fiber Cable , Outdoor OS2 Single Mode Fiber Cable supplier
PE GYTS 12 Core Optical Fiber Cable , Outdoor OS2 Single Mode Fiber Cable supplier PE GYTS 12 Core Optical Fiber Cable , Outdoor OS2 Single Mode Fiber Cable supplier PE GYTS 12 Core Optical Fiber Cable , Outdoor OS2 Single Mode Fiber Cable supplier

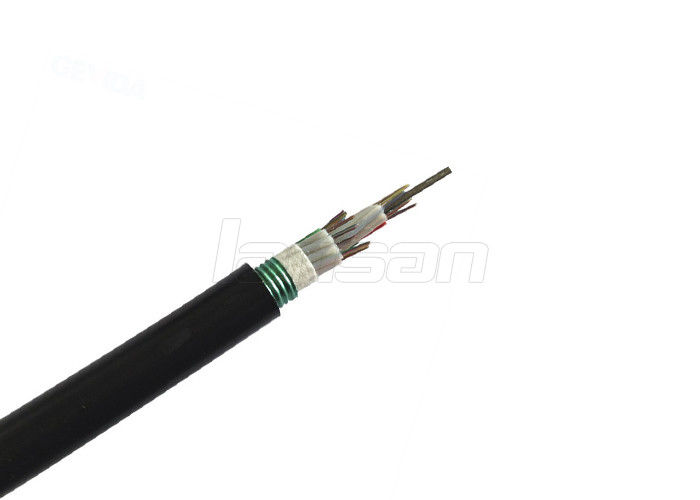

Large Image :  PE GYTS 12 Core Optical Fiber Cable , Outdoor OS2 Single Mode Fiber Cable

Product Details:

Place of Origin: China
Brand Name: OEM/ ODM/ Lansan
Certification: ETL/ UL/ RoHS/ CE
Model Number: GYTS

Payment & Shipping Terms:

Minimum Order Quantity: 5000 Meters
Price: Negotiation
Packaging Details: 1000 Meters/ roll
Delivery Time: 10-12 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100000 Meters / day
Contact Now
Detailed Product Description
Model No.: GYTS Type: Single-mode Fiber
Application: Communication Fiber: OS2 G652D
Origin: China Color: Black



Coated Steel Tape Outdoor PE GYTS Fiber Optical Single Mode 12 Cords OS2 Outdoor Cable​







Description

These cables are constructed with a multiple tube filled with water blocking jelly giving very high fiber
count up to 144 fiber stranded fiber optic cable, they form the backbone of high speed networks.
They give flexibility and versatility to networks and can be used for duct and direct burial applications.

Metallic/ Non metallic FRP strength members in the cable give it good tensile strength, water blocking
jelly in the tube and tape over the tube give it excellent water and moisture resistance. A corrugated
steel armouring and PE sheath give this cable excellent tensile strength, mechanical, rodent, ultraviolet
and environmental protection. They come in larger delivery length, so can also be used in long distance
communication system, building interconnections, trunk lines, LAN, distribution networks.


Mechanical & Environmental Characteristics



Item Value
Max. Tensile Load (Short Term) 3000N
Max. Tensile Load (Long Term) 1000N
Max. Crush Load (Short Term) 3000N/100mm
Max Crush Load (Long Term) 1000N/100mm
UL Fire Rated OFNR
Operating Temperature -20°C to +60°C
Storage Temperature -40°C to +85°C
Sheath Material Standard: PE Optional: LSZH or other



Optical Characteristics


Of all the differences between multimode & singlemode fiber, the most fundamental differences are the
size of the fiber's core and the associated attenuation or loss and bandwidth of the fiber. The smaller the
core diameter, the higher the fiber's bandwidth and the lower the attenuation (loss in dB per kilometer).
The fiber's attenuation and bandwidth are also dependent on wavelength.

Singlemode was for high-speed longdistance transmission and multimode (in either the 50 µm or 62.5 µm
core diameters) was used for lower speed short distance applications. Multimode 50 µm fiber had a lower
cost and higher modal bandwidth than multimode 62.5 µm core fiber. Bandwidth is a measurement of the
data carrying capacity of the fiber. A higher bandwidth fiber carries more data. See table below.





PE GYTS 12 Core Optical Fiber Cable , Outdoor OS2 Single Mode Fiber Cable
