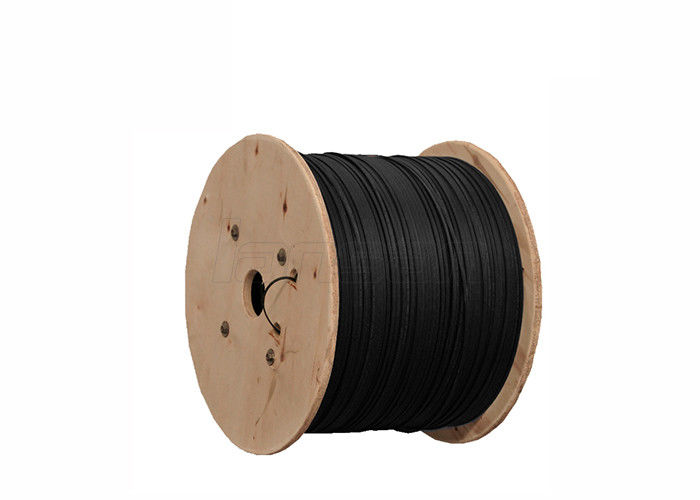

GYXTW ETL Armored Fiber Optic Cable OS2 Central Tube For Aerial

Place of Origin China
Brand Name OEM/ ODM/ Lansan
Certification ROHS/ CE/ ETL/ UL
Model Number GYXTW
Minimum Order Quantity 1000 meters
Price Negotiation
Packaging Details 1000 meters/spool
Delivery Time 10-12 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability 20000 Meters
Product Details
Type Central Tube Sheath Material PE
Mode Single Mode OS2 Jacket PE
Brand OEM/ ODM/ Lansan Name Os2 Fiber Optic Cable
High Light

ETL Armored Fiber Optic Cable

,

Aerial Armored Fiber Optic Cable

,

OS2 Optical Fiber Cable

Leave a Message
Product Description



OS2 4 Cords Central Loose Tube Outdoor Amored Fiber Optic Cable GYXTW Cable







Physical Properties



Fiber Count

Nominal Outer Diameter

(mm)

Nominal Outer Diameter

(in)

Maximum Pulling Load
Installation(N/Ib) In Service(N/Ib)
2-24 12.6*25.1 0.50*0.99 2670/600 890/200
36-72 14.7*27.1 0.58*1.07 2670/600 890/200
96-144 20.2*32.6 0.80*1.29 2670/600 890/200



Mechanicial Properties



Minimum Bending Radius:   Maximum Compressive Load: 4000N for unarmored cables;
Under installation: 20×OD   6000N for armoured cables
During operation 0×OD for unarmoured cables Repeated Impact: 4.4 N.m (J)
  20×OD for armoured cables Twist (Torsion): 180×10 times, 125×OD
Temperature Range:   Cyclic Flexing: 25 cycles for armoured cables.
Operating Temperature Range: -40ºC(-40ºF) to +70ºC(+158ºF)   100 cycles for unarmoured cables.
Storage Temperature Range: -50ºC(-58ºF) to +70ºC(+158ºF) Crush Resistance: 220N/cm (125lb/in)



Characteristics



  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • Crush resistance and flexibility
  • Two parallel steel wires ensure tensile strength
  • Small diameter, light weight and friendly installation


Application



  • Adopted to outdoor distribution.
  • Suitable for aerial, pipeline laying method.
  • Long distance and local area network communication.
