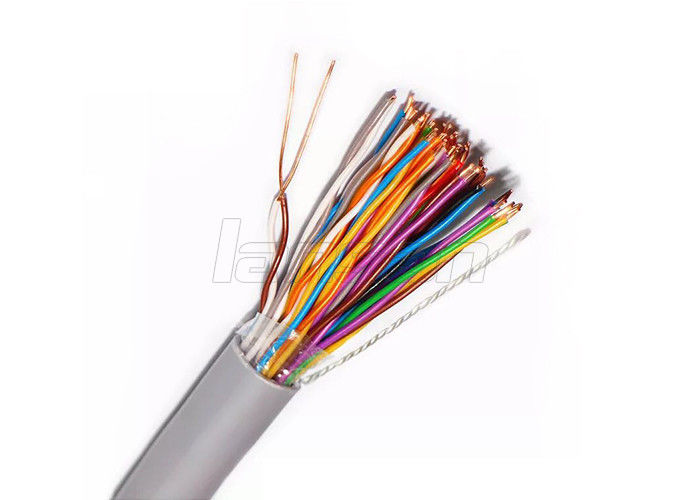

Shielded Twisted Pair Cat3 Telephone Cable 0.50 Copper Clad Aluminum For Telecommunication

Shielded Twisted Pair Cat3 Telephone Cable 0.50 Copper Clad Aluminum For Telecommunication

    • Shielded Twisted Pair Cat3 Telephone Cable 0.50 Copper Clad Aluminum For Telecommunication
    • Shielded Twisted Pair Cat3 Telephone Cable 0.50 Copper Clad Aluminum For Telecommunication
    • Shielded Twisted Pair Cat3 Telephone Cable 0.50 Copper Clad Aluminum For Telecommunication
  • Shielded Twisted Pair Cat3 Telephone Cable 0.50 Copper Clad Aluminum For Telecommunication

    Product Details:

    Place of Origin: China
    Brand Name: OEM/ ODM/ Lansan
    Certification: UL/ ETL/ CE/ RoHS
    Model Number: Telephone Cable

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 Rolls
    Price: Negotiation
    Packaging Details: Wooden Spool
    Delivery Time: 10-20 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
    Supply Ability: 10000 meters/ day
    Contact Now
    Detailed Product Description
    Cords: Customized Shielded: Al Foil
    Conductor Maetrial: Copper Clad Aluminum AWG: 24
    Jacket: PVC Operature Temperature: -20°C~75°C
    High Light:

    25 pair telephone cable

    ,

    cat3 25 pair cable

    Shielded Twisted Pair Cat3 0.50 Copper Clad Aluminum For Communication





    Specification



    Model NO. telecommunication Cable
    Conductor Dimension 0.37mm/0.40mm/0.50mm, 24AWG
    Conductor Material BC,OFC/CCA
    Insulation 1. Water blocking swellable tape (optional)
    2. HD-PE (High density polyethylene)
    3. 1.0mmHD-PE(Highdensity polyethylene)
    Number of Twisted Pair 2P/4P/8P/10P/16P/20P/25P/30P/32P/ 50P/100P/150P/200P....
    Shielding Al Foil
    Ripcord yes/no Yes with Nylon
    Jacket PVC (Polyvinyl-Chloride)/ LSZH (Low Smoke Zero Halogen)/PE
    Separator Mylar Spirally Wrapped
    Color Different color is available
    Operating temperature -20 ° C - +75 ° C
    Service Life 20~25 years



    Description

    • Annealed pure copper wire insulated with HDPE, each two different color insulated wires twisted together into pairs.
    • Cable core wrapped with polyester tape to act as heat resistant barrier.
    • Aluminum tape wrapped and then with sheat
