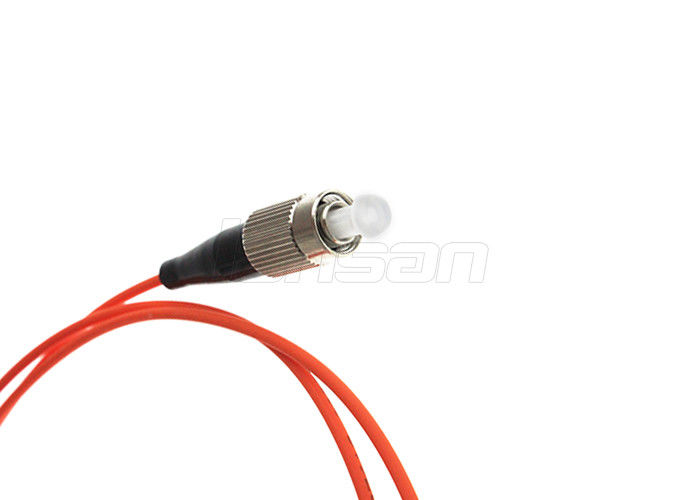

0.9mm FC Connector Fiber Optical Pigtail Riser Plenum LSZH Multimode OM3
| Place of Origin | China |
|---|---|
| Brand Name | OEM/ ODM/ Lansan |
| Certification | CE/ RoHS/ ETL/ UL |
| Model Number | FC |
| Minimum Order Quantity | 1000 Meters |
| Price | Negotiation |
| Packaging Details | 1 pcs/bag |
| Delivery Time | 10-12 Work Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100000 Meters/ day |
Product Details
| Connection Structure | FC | Diameter | 0.9mm |
|---|---|---|---|
| Type | Multimode | Transport Package | PE Bag +Carton |
| Origin | China | Core | Single Core |
| High Light | simplex fiber patch cord,multimode fiber patch cable |
||
Product Description
0.9mm FC Connector Fiber Optical Pigtail Riser Plenum LSZH Multimode OM3
Description
- Fiber optic pigtails are used in permanent connections between fiber patch panels and incoming cables / single blown fibers.
- Our offers a wide range of pigtails, designed and manufactured for demanding network applications. It comprises of
- multimode and singlemode. Pigtails are pre-constructed with connectors. Connector options include small form factors
- such as LC, MU as well as SC, FC and ST. These are based on 900μm tight buffer cores and suitable for internal use
- only inside suitable Fiber Management Systems.
Standards Compliance
- ISO/IEC 11801
- TIA-568-C.3
- EN50173 -1,ANSI TIA/EIA 568B
Features
- Constructed from high quality connectors and standard fibers
- Wide range of connector and fibre options available
- Tight Buffer 900µm buffer internal construction as standard
- Custom lengths, connector combinations and polishes are available.
- Other cable diameters and fibre types available on request
Specifications
| Connector Type | SC, LC, FC, ST, MU |
| Fiber Type | G652D, G657A, OM1, OM2, OM3, OM4 |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Jacket Material | PVC or LSZH |
| Cable Diameter | 0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm |
| Jacket Color (Multimode: OM1 & OM2) | Orange |
| Jacket Color (Multimode: OM3) | Aqua |
| Jacket Color (Multimode: OM4) | Aqua or Purple |
| Jacket Color (SingleMode: G652D & Gb57A) | Yellow |
| Insertion Loss (dB) Max. | ≤0.3 |
| Return Loss (dB) Singlemode | PC≥45, UPC≥50, APC≥60 |
| Return Loss (dB) Multimode | PC≥35dB |
| Note:Other Jacket colors may be available upon request. | |
