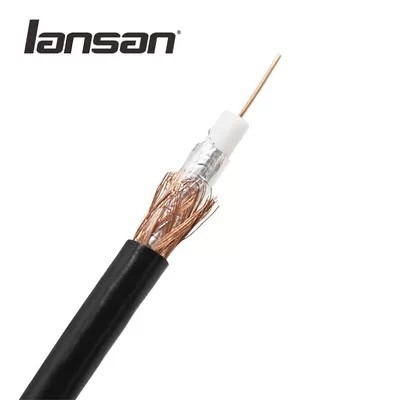

PVC PE Coaxial TV Cable 96 Braiding 0.81mm Conductor 75OHM RG59

Place of Origin China
Brand Name OEM/ ODM/ Lansan
Certification CE/ RoHS/ ETL/ ISO
Model Number RG59
Minimum Order Quantity 15000 Meters
Price Negotiation
Packaging Details 100 Meters/ Box
Delivery Time 12-14 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability 100000 Meters/ Day
Product Details
Conductor Bare Copper Insulation Foam PE
Type RG59 Coaxial Cable Braiding Wire Material Al-M
Jacket PVC Origin Shenzhen, China
High Light

PVC PE Coaxial TV Cable

,

Coaxial TV Cable 96 Braiding

,

0.81mm Conductor Copper Coaxial Cable

Leave a Message
Product Description





 96 Braiding Coaxial TV Cable 0.81mm Conductor 75OHM RG59



Characteristics



  • High velocity of propagation, low attenuation, low return loss;
  • Perfect connecting cable for digital video and audio signals for the highest quality image;
  • Perfect cable for satellite TV & high speed internet;
  • Durable & flexible PVC jacket is ideal for running cable through dry wall and over drop ceilings girders;
  • Allows for bending cable without damaging the quad shielded insulated wiring

Specification



Name Material Parameter
Inner conductor Bare copper 0.81 mm (diameter)
Dielectric Physical foam PE 3.66 mm (diameter)
First shield Bonded aluminum foil 3.84 mm (diameter)
Second shield Aluminum braid 67% or 95% coverage
Jacket PVC or PE 6.10 mm (diameter)
Messenger N/A N/A





Attenuation at 20ºC



Frequency (MHz) 5 55 300 500 750 1000
Maximum(dB/100m) 2.82 6.73 14.60 18.70 22.87 26.64
