Product Details
Place of Origin: China
Brand Name: OEM/ ODM/ Lansan
Certification: CE/ RoHS/ ETL/ ISO
Model Number: RG6
Payment & Shipping Terms
Minimum Order Quantity: 15000 Meters
Price: Negotiation
Packaging Details: 100 Meters/ Box
Delivery Time: 12-14 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 100000 Meters/ Day
Conductor Material: |
Bare Copper |
Conductor Size: |
1.02mm |
Braiding: |
Customized |
Insulation: |
FPE |
Jacket: |
PE |
Name: |
Cctv Coaxial Cable |
Conductor Material: |
Bare Copper |
Conductor Size: |
1.02mm |
Braiding: |
Customized |
Insulation: |
FPE |
Jacket: |
PE |
Name: |
Cctv Coaxial Cable |

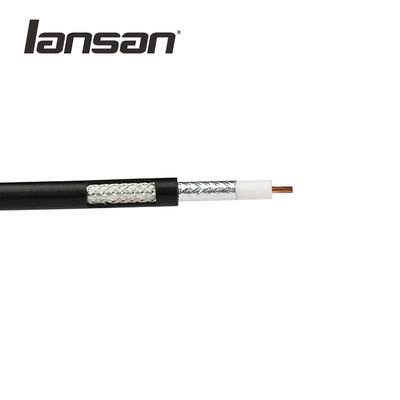

60% Braiding Coverage Indoor CCTV System RG6 Bare Copper Coaxial Cable
Descrption
RG6 coaxial cable is a common form of cable that is used in a variety of settings. Besides being used for home surveillance product insulation, this RG6 coaxial cable is also used in homes for installing cable television. RG6 coaxial cable differs from RG59 coaxial cable in that it has a larger core conductor and the insulation is also thicker as well. The thickness of RG6 cable can be twice as thick or even up to four times as thick of shielding material versus that of RG59 cable which has only one layer of shielding material added. This makes the RG6 cable better suited to carry transmissions further than other types of cable.
Applications
RG6 tri-shield 90% coverage cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Center conductor
Comparing
| Coaxial Cable | Conductor | No. and Nominal Diameter of Strands#/mm |
Sheathed | Nominal Overall Diameter(mm) |
| RG6 | TCW(Tinned Copper Wire) | 1/1.02 | PVC | 6.5 |
| RG11 | TCW | 7/0.40 | PVC | 10.30 |
| RG58 | TCW | 19/0.18 | PVC | 4.90 |
| RG59 | TCW | 1/0.58 | PVC | 6.15 |
