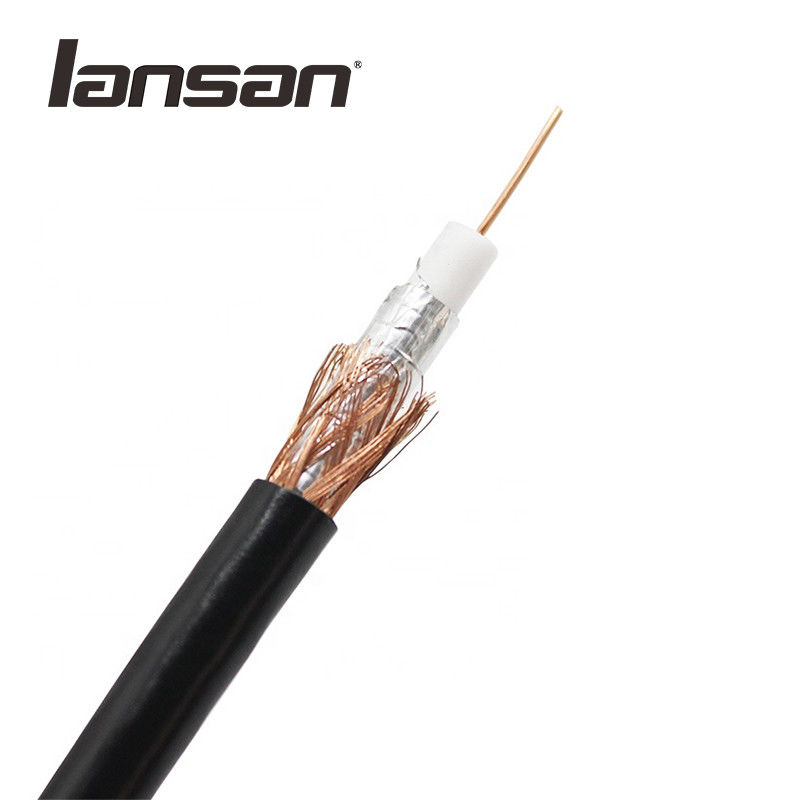

CCS Conductor PE Jacket RG59 Coaxial TV Cable For Camera
Place of Origin | China |
---|---|
Brand Name | OEM/ ODM/ Lansan |
Certification | UL/ ETL/ RoHS/ CE |
Model Number | RG59 |
Minimum Order Quantity | 100 rolls |
Price | 15USD~80USD |
Packaging Details | 305 meters/Roll |
Delivery Time | 10-20 work days |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, Paypal |
Supply Ability | 1000 rolls/ day |
Product Details
Conductor | CCS/ CCA/ Copper | Insulation | Foam PE/ Solid PE |
---|---|---|---|
Braiding | CCA/ AL-Mg/ Copper | Jacket | PE |
Application | CFTV/ CCTV | ||
High Light | RG59 Coaxial TV Cable,PE Jacket Coaxial TV Cable,CCS Conductor Television Coaxial Cable |
Product Description
Competitive Price RG59 Coaxial TV Cable PE Jacket CCTV Cable For Security Camera Good Performance High Speed
Specification
- RG59 coxial cable meets CE ROHS and MIL-C-17F
- Conductor: CCS/BC/TC
- Insulation:LDPE
- Braid:16*7*0.16mm BC
- 0.81mmCCS+3.65mmFPE+AL FOIL+0.12/48/64/96 ALMG+5.9PVC
- Customers' specifications are welcomed
- UL, RoHS,ISO9000,CE
Electrical characteristics
- Impedance:75±3Ω
- Capacitance:66±3pF/m
- Max attention:20°C
- Flammability grade: CMX,CM
- Operating temperature: -25~70°C or -40~70°C
- Insulation resistance: ≥5000MΩ/km
- Reference GB/T14864-93 Standards
