Product Details:
Payment & Shipping Terms:
|
| Conductor: | 26AWG Bare Copper | Insulation: | FM-PE |
|---|---|---|---|
| Cord: | 4 Pairs | Jacket: | LSZH |
| Shiled: | Al Foil | Color: | Customized |
| Application: | Computer Networks/Instrumentation | Fire Rating: | CMX/ CMG/ CM/ CMR/ CMP |

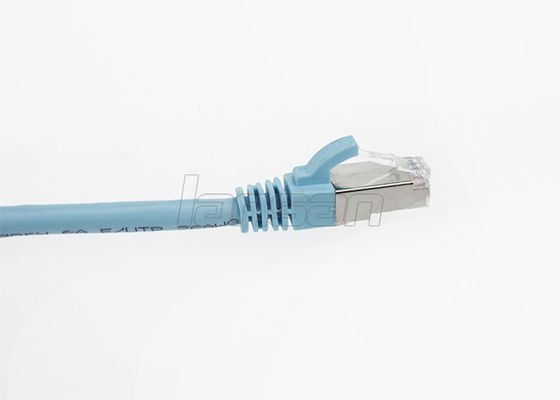

LSZH Jacket PE Insulation Cat6A Cable High Speed Transmission Patch Cord
Description
Lansan patch cords with high-quality electric and mechanical properties.
Meeting high-end demand and achieve superior shielding effect by virtue of aluminum foil.
Constructed with high-quality cable and a shortened body plug, prevents unwanted cable snaps during installation and provides strain-relief.
Easy to insert and remove cables in high density applications.
Designed for network adapters, hubs, switches, routers, DSL/cable modems and patch panels.
Specification
| No. of Cord | 4 Pairs | |
| Conductor | Material | BC |
| Construction | 26AWG 7/0.16mm | |
| Insulation | Material | FM-PE |
| Filler | / | |
| Shield | Material | Al - Mylar |
| Braiding | Aluminum Magnesium Ally Solid | |
| Drain Wire | Material | Aluminum Magnesium Metal |
| Rip Cord | Nylon | |
| PE Cross | Material | Polyethy Lene |
| Construction | 4.4mm*4.4mm | |
| Jacket | Material | LSZH |
| O.D. | 6.2 ± 0.1mm | |
| Color | Customized | |
| Marking | Customized | |
| Mutual Capacitance | 5.8nF/100m | |
| Characteristic Impedance | 100Ω ±15%,1~ 350MHz | |
| Conductor DC Resistance | 9.3Ω/100m Max. | |
| Voltage | 300V | |
| Delay Skew | 25ns/100m Max. | |
