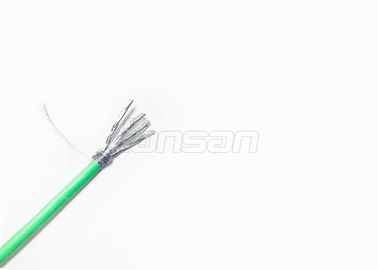

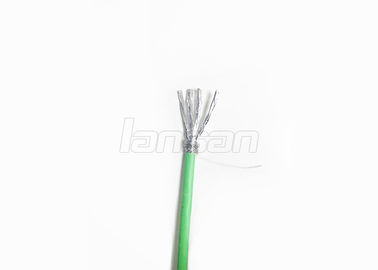

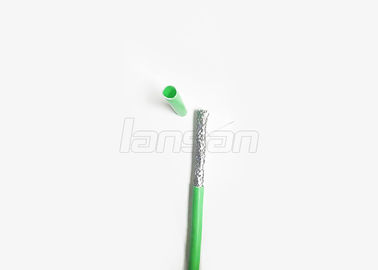

Bare Copper 23AWG SFTP Network Lan Cable Pass Fluke Test For Indoor Use
| Place of Origin | China |
|---|---|
| Brand Name | OEM/ ODM/ Lansn |
| Certification | UL/ CE/ ETL/ ROHS/ ANATEL |
| Model Number | CAT6A S/FTP |
| Minimum Order Quantity | 50 Rolls |
| Price | Negotiation |
| Packaging Details | 305 meter/roll |
| Delivery Time | 12-15 Work Day |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal |
| Supply Ability | 5000 Rolls/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor | 0.57mm Solid Bare Copper | Insulation | HDPE |
|---|---|---|---|
| Cord | 4 Twisted Pairs | Shiled | Al Foil |
| Jacket | PVC | Color | Customize |
| Highlight | cat6a network cable,cat6a sftp cable |
||
Product Description
Bare Copper 23AWG Network Cable SFTP Cable Pass Fluke Test For Indoor Use
Description
-
LANSAN Intelligent Structure Cabling products include shielded and unshielded
Category 5E, Category 6, Category 6A and Category 7 and all series fiber optic
products. -
Widely used at Voice data, Graphic image, Multi-media, Security monitoring and other
data transmission. -
Combined with keystone Jack Patch cords, and patch panel, it provides
excellent and stable performance. -
The solution is for hospital, government manufacturingand other environments.
Specification
| No. of Cord | 4 Pairs | |
| Conductor | Material | BC |
| Construction | 1/0.57± 0.008mm | |
| Insulation | Material | HDPE |
| Filler | / | |
| Shield1 | Material | Single side AL foil which electic side toward outside |
| Coveragae | ≧25% | |
| Shield2 | Material | Single side AL foil which electic side toward iutside |
| Coveragae | ≧25% | |
| Drain Wire | Material | Aluminum Magnesium Metal |
| Rip Cord | Nylon | |
| Jacket | Material | PVC |
| O.D. | 8.0 ± 0.3mm | |
| Color | Customized | |
| Marking | Customized | |
| Insulation Resistance | Min. 5000 mega ohms-km at 20℃ | |
| Dielectric Test | 1000V DC /1 min ; No Breakdown | |
| Temperature Rating | 60℃ | |
| Operating Temperature | -20℃ ~ 80℃ | |
| Bend Radius | 4 x cable diameter | |
Features
- Humanized Design
- Full series Keystone Jack supported
- Quick Installation design avaiable
Competitive Advantage
- For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.
- For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.
- For production capacity, we could produce 30 million meters cable monthly, which will assure you of prompt delivery of the goods.
- Certificates: ISO, CE, CCC,ETL, RoHS ,ANATEL & UL approval.
