LSZH Customized Indoor UTP Cat6 Lan Cable 23 America Guage Wire 305m/Pull Box

Certifications
Good quality Cat6 Lan Cable for sales
Good quality Cat6 Lan Cable for sales
Customer Reviews
We're very Pleased to cooperate with you. Your good service makes me be satisfied! Will definitely be ordering more in the futher.

—— Ashot Matinyan

Good quality Good Service! I am impressed. Keep cooperating!

—— Paula Chiarato

I'm Online Chat Now

LSZH Customized Indoor UTP Cat6 Lan Cable 23 America Guage Wire 305m/Pull Box

China LSZH Customized Indoor UTP Cat6 Lan Cable 23 America Guage Wire 305m/Pull Box supplier
LSZH Customized Indoor UTP Cat6 Lan Cable 23 America Guage Wire 305m/Pull Box supplier LSZH Customized Indoor UTP Cat6 Lan Cable 23 America Guage Wire 305m/Pull Box supplier

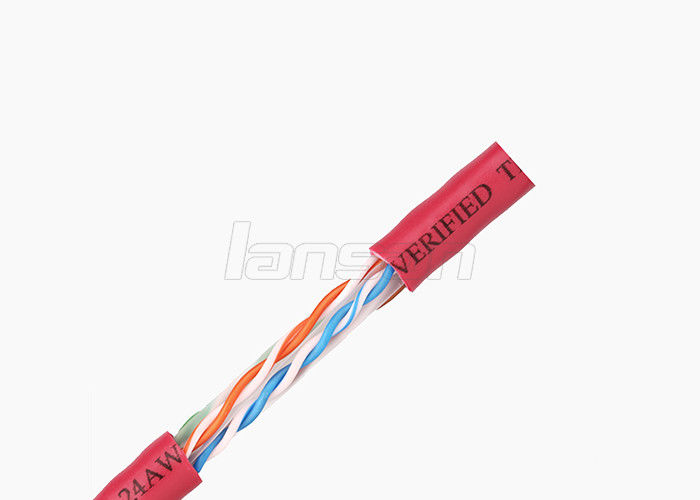

Large Image :  LSZH Customized Indoor UTP Cat6 Lan Cable 23 America Guage Wire 305m/Pull Box

Product Details:

Place of Origin: China
Brand Name: OEM/ ODM/ Lansn
Certification: UL/ CE/ ETL/ ROHS/ ANATEL
Model Number: CAT6 UTP

Payment & Shipping Terms:

Minimum Order Quantity: 50 Boxes
Price: Negotiation
Packaging Details: 305 meter/box
Delivery Time: 12-15 Work Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal,
Supply Ability: 5000 Boxes/Day
Contact Now
Detailed Product Description
Conductor: 0.57mm Solid Copper Insulation: HDPE
Name: Cat6 Utp Cable Shiled: Al Foil
Jacket: LSZH PE Cross: Polyethy Lene
Rip Cord: Nylon Color: Customized



LSZH Customized Indoor Network Ethernet Cat6 UTP Cable 23 America Guage Wire 305m/pull box



Description

  • LANSAN Intelligent Structure Cabling products include shielded and unshielded
    Category 5E, Category 6, Category 6A and Category 7 and all series fiber optic
    products.

  • Widely used at Voice data, Graphic image, Multi-media, Security monitoring and other
    data transmission.

  • Combined with keystone Jack Patch cords, and patch panel, it provides
    excellent and stable performance.

  • Lots of successful project cases in worldwide finance, education, health care,
    government buildings and other important industries.

Specification


  No. of Cord   4 Pairs
  Conductor   Material   BC
  Construction   23AWG 1/0.57 ± 0.008mm
  Insulation   Material   HDPE
  Filler   /
  Shield   Material   /
  Braiding   /
  Drain Wire   Material   /
  Rip Cord   Nylon
  PE Cross   Material   Polyethy Lene
  Construction   4.4mm*4.4mm
  Jacket   Material   LSZH
  O.D.   6.2 ± 0.25mm
  Color   Customized
  Marking   Customized
  Insulation Resistance   Min. 5000 mega ohms-km at 20℃
  Dielectric Test   1000V DC /1 min ; No Breakdown
  Temperature Rating   60℃
  Operating Temperature   -20℃ ~ 80℃
  Bend Radius   4 x cable diameter


Applications



  • Computer network cabling project
  • Broadband network communication
  • Ethernet network, IP camera
  • Audio and data transmission
  • Digital ISDN network and ATM 155Mbps network



Packing



  • Packing length: 305 meters/roll/box, 2 boxes/carton
  • Inside packing: pull box
  • Outer packing: carton box
  • Other packing according to customer's requirements
