Product Details
Place of Origin: China
Brand Name: OEM/ ODM/ Lansn
Certification: UL/ CE/ ETL/ ROHS/ ANATEL
Model Number: CAT6A S/FTP
Payment & Shipping Terms
Minimum Order Quantity: 50 Rolls
Price: Negotiation
Packaging Details: 305 meter/roll
Delivery Time: 15 Work Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal
Supply Ability: 5000 Rolls/Day
Conductor: |
Solid Bare Copper |
Insulation: |
Cat6a Shielded Cable |
Cord: |
4 Twisted Pairs |
Shiled: |
Al Foil |
Jacket: |
ROHS PVC/ LSZH |
Color: |
Customized |
Conductor: |
Solid Bare Copper |
Insulation: |
Cat6a Shielded Cable |
Cord: |
4 Twisted Pairs |
Shiled: |
Al Foil |
Jacket: |
ROHS PVC/ LSZH |
Color: |
Customized |

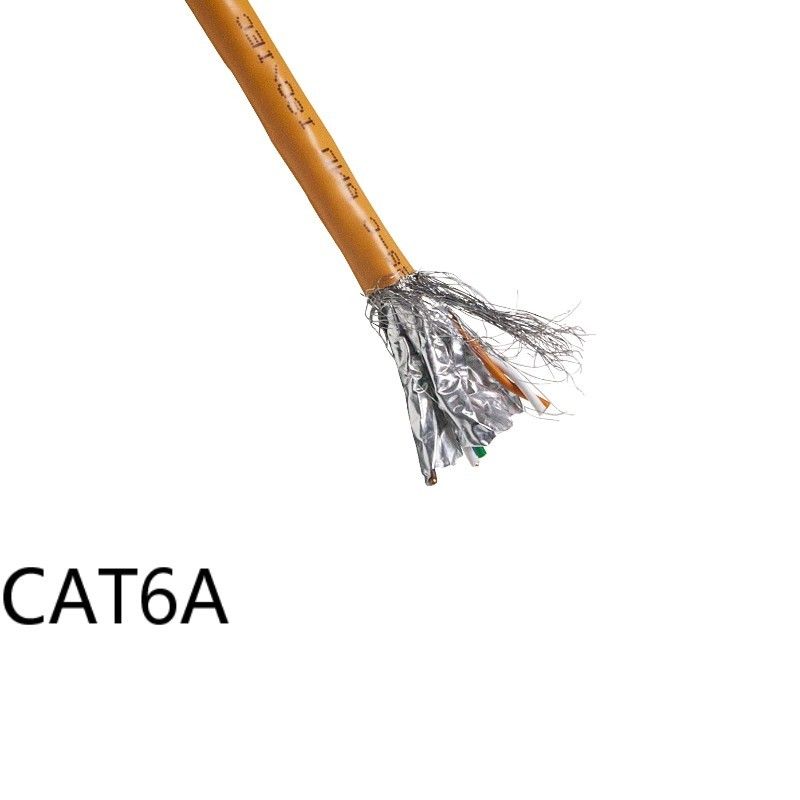

Network Cable Cat6A Lan Cable Copper S/FTP With High Speed 10GB
Description
LANSAN Intelligent Structure Cabling products include shielded and unshielded
Category 5E, Category 6, Category 6A and Category 7 and all series fiber optic
products.
Widely used at Voice data, Graphic image, Multi-media, Security monitoring and other
data transmission.
Combined with keystone Jack Patch cords, and patch panel, it provides
excellent and stable performance.
The solution is for hospital, government manufacturingand other environments.
Specification
| No. of Cord | 4 Pairs | |
| Conductor | Material | BC |
| Construction | 1/0.57± 0.008mm | |
| Insulation | Material | HDPE |
| Filler | / | |
| Shield1 | Material | Single side AL foil which electic side toward outside |
| Coveragae | ≧25% | |
| Shield2 | Material | Single side AL foil which electic side toward iutside |
| Coveragae | ≧25% | |
| Drain Wire | Material | Aluminum Magnesium Metal |
| Rip Cord | Nylon | |
| Jacket | Material | ROHS PVC/ LSZH |
| O.D. | 8.0 ± 0.3mm | |
| Color | ||
| Marking | Customized | |
| Insulation Resistance | Min. 5000 mega ohms-km at 20℃ | |
| Dielectric Test | 1000V DC /1 min ; No Breakdown | |
| Temperature Rating | 60℃ | |
| Operating Temperature | -20℃ ~ 80℃ | |
| Bend Radius | 4 x cable diameter | |
