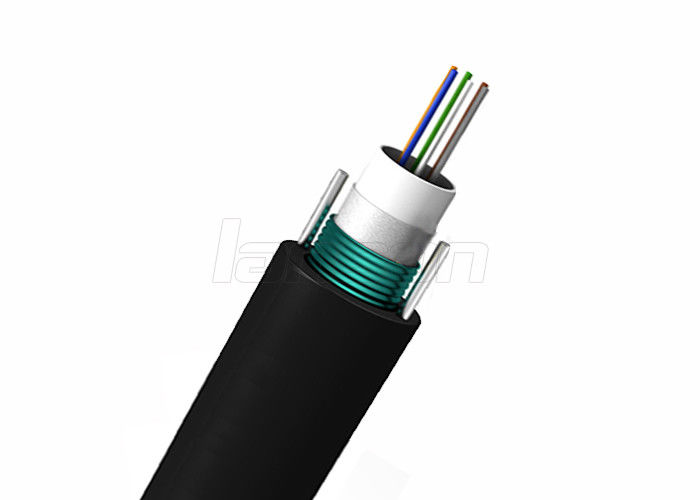

Loose Tube OM4 Multimode Optical Fiber Cable , 50 / 125 Fiber Optic Outdoor Cable

Name: Loose Tube OM4 Multimode Optical Fiber Cable , 50 / 125 Fiber Optic Outdoor Cable
Brand: OEM/ ODM/ Lansan
SKU: GYXTW
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (176 reviews)

Product Details

Place of Origin: China

Brand Name: OEM/ ODM/ Lansan

Certification: ROHS/ CE/ ETL/ UL

Model Number: GYXTW

Payment & Shipping Terms

Minimum Order Quantity: 1000 meters

Price: Negotiation

Packaging Details: 1000 meters/spool

Delivery Time: 10-12 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 20000 Meters

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                armored optical cable, outdoor optical fiber cable


Loose Tube Material:	Fbt	Installation:	Aerial /Duct
Mositure Resistance:	Gel Filled	Fiber:	MultiMode OM4
Optical Fiber Cable:	Outdoor Fiber Cable	HS Code:	854470000

Loose Tube Material:	Fbt
Installation:	Aerial /Duct
Mositure Resistance:	Gel Filled
Fiber:	MultiMode OM4
Optical Fiber Cable:	Outdoor Fiber Cable
HS Code:	854470000

Loose Tube OM4 Multimode Optical Fiber Cable , 50 / 125 Fiber Optic Outdoor Cable

OM4 50 / 125 Steel Wire Water Barrier 12 Cords Central Loose Tube Fiber Optical Cable

Application

Long-distance communication
local trunk line
CATV & computer networks system

Technical Features

Low dispersion and attenuation
Proper design, precise control for fiber excess length render the cable *excellent mechanical and environmental characteristics.
Steel-PE sheath makes cable have nice moisture resistance performance
Small cable diameter, light cable weight, easily to install.
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special Tube filling comound ensure a critical protection of fiber Crush Resistance and flexibility
Two parallel steel wires ensure tensile strength

Physicial Parameter

Quantity of fibers	2-24
Promised tension (N)	Long-term 600 Short-term 1500
Promised pulling tension (N100/mm)	Long-term 300 Short-term 1000
Min bend radius(mm)	Long-term 20D Short-term 10D
Operating temperature ( o C)	-40~60
The way	Aerial Duct

Characteristics:

Large span lengths and the largest span is over 1700m.
Non-metallic material, with high insulating property performances as well as lightningproof
Special Anti-Track outer sheath (optional) protection, strong anti-electro-corrosion ability.
The aramid yarn ensures the cable's tensile resistance, and also have good bulletproof performances.
Light weight with small diameter, reducing the load caused by ice and wind as well as the load on the towers and backprops.
Can be installed without shutting off the power.
