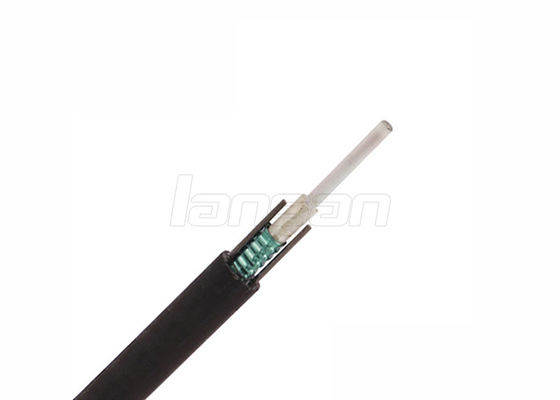

GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 2 - 24 Cores For Duct / Aerial
| Place of Origin | China |
|---|---|
| Brand Name | OEM/ ODM/ Lansan |
| Certification | ROHS/ CE/ ETL/ UL |
| Model Number | GYXTW |
| Minimum Order Quantity | 1000 meters |
| Price | Negotiation |
| Packaging Details | 1000 meters/spool |
| Delivery Time | 10-12 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability | 20000 Meters |
Product Details
| Model NO. | GYXTW | Strengthen Member | Metallic |
|---|---|---|---|
| Cover Material | PE | Using | Aerial |
| Loose Tube | Uni-Tube Cable | Water Blacking Tape | Yes |
| High Light | armored optical cable,single mode fiber cable |
||
Product Description
Waterproof GYXTW 9 / 125 OS2 Single Mode Lost Tube 1000Meters / Roll Fiber Optic Outdoor Cable
Product Description
- GYXTW is an outdoor use optical fiber cable suitable for duct and aerial applications.
- We supply GYXTW fiber optic cable from 2 fiber cores to 24 fiber cores.
- Both single mode type and multimode types are available.
- Fiber optic cable GYXTW, 2~12 fibers, jelly filled and fiber contained central loose tube, copolymer coated steel tape, two parallel steel wires 1.2mm, PE outer sheath, G652D SM fiber, detailed specification on your request.
Specification
|
Recommended laying methods |
Aerial |
| Allpicable fields | Long distance communication and LAN |
| Properties | Water proofing layer providing strong water resistance peformance |
| Steel tape with PE outer enhancing anti-crush and tensile property of cable | |
| Structure characters | Water proofing layer between the steel tape and cable core |
| Double coated PE corrugated steel tape under PE sheath | |
| Parallel double steel wires as strengthen member | |
|
We can design oval cross section and non-metallic structure on requirement,e.g:GYXTEW,GYFXTW,GYFXTEW etc. |
Technicial Data
| Fiber range | Cable weight (kg/km) | Min.bending radius(mm) | Allowable tension(N) | Max.crus loading force(N/1000mm) | ||||
| Cableouter diameter | static | dynamic | short term | long term | short term | long term | ||
| 2-12 | 8.9 | 90 | 10times cable diameter | 20times cable diameter | 1500 | 600 | 1000 | 300 |
| 12-24 | 10.2 | 110 | ||||||
Features
- Low dispersion and attenuation
- Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
- Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
- With small cable diameter, light cable weight, easily to layOperating Temperature: -40 ~ +60 °C
