Home > products > Cat5e Lan Cable > 0.5mm CCA Cat5e SFTP Cable PE Insulation For Telecommunication Length Customized

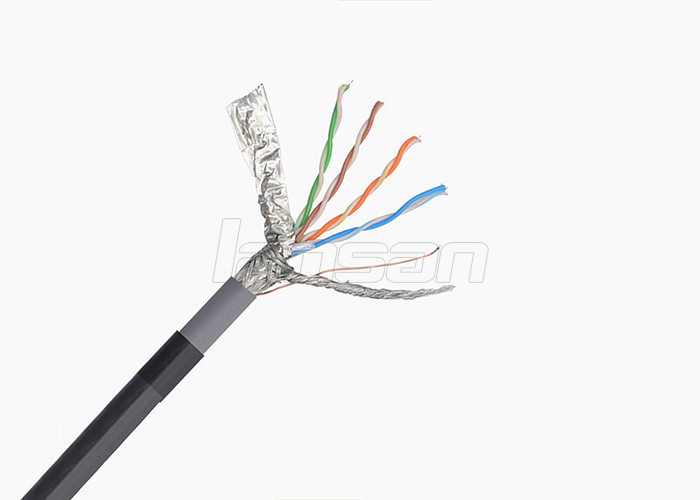

0.5mm CCA Cat5e SFTP Cable PE Insulation For Telecommunication Length Customized

Product Details

Place of Origin: China

Brand Name: OEM/ ODM/ Lansn

Certification: UL/ CE/ ETL/ ROHS/ ANATEL

Model Number: CAT5E SFTP

Payment & Shipping Terms

Minimum Order Quantity: 50 Rolls

Price: Negotiation

Packaging Details: 305 meter/roll

Delivery Time: 12-15 Work Day

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal

Supply Ability: 5000 roll/Day

Get Best Price
Highlight:

ethernet lan cable

,

utp cat5e cable

Conductor:
0.5mm CCA (Copper Clad Aluminum)
Cord:
Solid CCA
Shiled:
Al Foil+Al Mg
Jacket:
PVC
Length:
Customized
HS Code:
8544
Conductor:
0.5mm CCA (Copper Clad Aluminum)
Cord:
Solid CCA
Shiled:
Al Foil+Al Mg
Jacket:
PVC
Length:
Customized
HS Code:
8544
0.5mm CCA Cat5e SFTP Cable PE Insulation For Telecommunication Length Customized

0.5mm CCA Cat5e SFTP Indoor Cable PE Insulation Telecommunication




Product characteristics

  • Its performance is far higher than TIA/EIA568C standard
  • Adopting trident high-low needle RJ45 head, 50μinch gold plating;
  • Each jumper is covered by a layer of aluminum foil to guarantee the continuity and stability of the shield;
  • Transmission bandwidth≥100 MHz;
  • The stress on each joint part is eliminated by complete molding process;
  • The sheath shall be especially lengthened to ensure the bending radius of the cables;
  • Adopting seven 34AWC fine copper wires with better flexibility;


Specification


  No. of Cord   4 Pairs
  Conductor   Material   CCA
  Construction   1/0.50 ± 0.008mm
  Insulation   Material   HDPE
  Filler   /
  Shield   Material   AI-Mylar
  Braiding   Aluminum Magnesium Ally Solid
  Drain Wire   Material   Aluminum Magnesium Metal
  Rip Cord   Nylon
  Jacket   Material   PVC
  O.D.   6.2 ± 0.30mm
  Color   Customized
  Marking   Customized
  Insulation Resistance   Min. 5000 mega ohms-km at 20℃
  Dielectric Test   1000V DC /1 min ; No Breakdown
  Temperature Rating   60℃
  Operating Temperature   -20℃ ~ 80℃
  Voltage   300V


Application


Used as work-station oution to the FD / IDF and other horizontal cabling, supporting TP - PMD Audio, integrated service digital network(ISDN) , ATM 155Mbps, 1Gmbps TPDDI, Fast Ether-net etc.



0.5mm CCA Cat5e SFTP Cable PE Insulation For Telecommunication Length Customized 0
