Product Details
Place of Origin: China
Brand Name: OEM/ ODM/ Lansn
Certification: UL/ CE/ ETL/ ROHS/ ANATEL
Model Number: CAT5E UTP
Payment & Shipping Terms
Minimum Order Quantity: 50 Boxes
Price: Negotiation
Packaging Details: 305 meter/box
Delivery Time: 12-15 Work Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal
Supply Ability: 5000 Box/Day
Insulation: |
HDPE |
Shiled: |
Al Foil |
Name: |
Shielded Ethernet Cable |
Jacket: |
PVC |
Cord: |
4Pairs |
Conductor: |
0.5mm CCA(Copper Clad Aluminum) |
Insulation: |
HDPE |
Shiled: |
Al Foil |
Name: |
Shielded Ethernet Cable |
Jacket: |
PVC |
Cord: |
4Pairs |
Conductor: |
0.5mm CCA(Copper Clad Aluminum) |

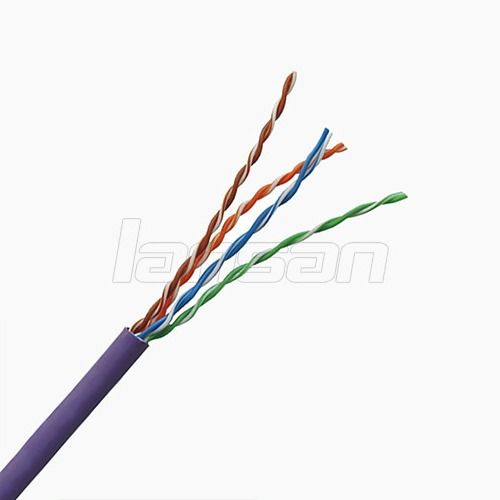

Indoor Unshielded Cat5e Lan Cable 4 Pairs 24AWG 0.5mm CCA For Multi Media
Description
Long transmission distance, small transmission loss, wear resistance, resistance to pressure.
| No. of Cord | 4 Pairs | |
| Conductor | Material | CCA |
| Construction | 1/0.50 ± 0.008mm | |
| Insulation | Material | HDPE |
| Filler | / | |
| Shield | Material | AI-Mylar |
| Braiding | / | |
| Drain Wire | Material | / |
| Rip Cord | Nylon | |
| Jacket | Material | PVC |
| O.D. | 5.1 ± 0.30mm | |
| Color | Customized | |
| Marking | Customized | |
| Insulation Resistance | Min. 5000 mega ohms-km at 20℃ | |
| Dielectric Test | 1000V DC /1 min ; No Breakdown | |
| Temperature Rating | 60℃ | |
| Operating Temperature | -20℃ ~ 80℃ | |
| Voltage | 300V | |
Features
BC and CCA conductor for options
high flexible HDPE insolution
NEW PVC jacket
FTP struction also available
SFTP Aailable as below:
