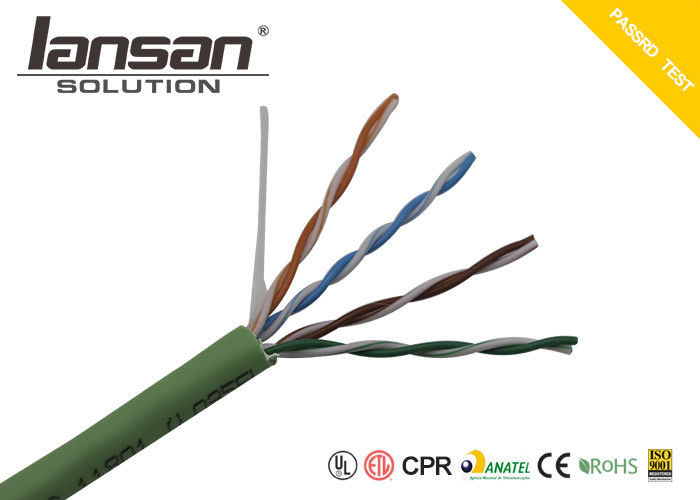

Communication Cable Indoor CAT5e UTP Cable 24AWG CCA Conductor PVC Jacket

Place of Origin China
Brand Name LANSAN
Certification CE REACH ROSH
Model Number CAT5e
Minimum Order Quantity 10000m
Price USD12.85 per 305m/Box
Packaging Details inner pull box, 2box per carton
Delivery Time about 20 days
Payment Terms L/C, T/T
Supply Ability 5000 Box/Day
Product Details
CAT CAT5e Shield UTP
Conductor CCA Jacket PVC
Use Indoor Size 305m/Box
High Light

PVC jacket Cat5e Utp Cable

,

CCA conductor Cat5e Utp Cable

,

communication Cat5e Lan Cable

Leave a Message
Product Description

Description

CAT5e UTP 0.50CCA Solid Lan Cable

Indoor Use, PVC jacket

4 pair twister



Communication Cable Indoor CAT5e UTP Cable 24AWG CCA Conductor PVC Jacket 0



Roll Inside the Inner Box

Communication Cable Indoor CAT5e UTP Cable 24AWG CCA Conductor PVC Jacket 1

LANSAN Brand Master Carton

Communication Cable Indoor CAT5e UTP Cable 24AWG CCA Conductor PVC Jacket 2



  •

Specification

No. of Cord 4 Pairs
Conductor Material CCA
Construction 1/0.50 ± 0.008mm
Insulation Material HDPE
Filler /
Shield Material/ NA
Braiding NA
Drain Wire Material Aluminum Magnesium Metal
Rip Cord Nylon
Jacket Material ROHS
O.D. 6.0 ± 0.30mm
Color Customized
Marking Customized
Insulation Resistance Min. 5000 mega ohms-km at 20℃
Dielectric Test 1000V DC /1 min ; No Breakdown
Temperature Rating 60℃
Operating Temperature -20℃ ~ 80℃
Mutual Capacitance 5.8nF/100m


Application



  • Computer Network Cabling Project.
  • Broadband Network Communication.
  • Digital ISDN Network and ATM 155Mbps Network.
  • Ethernet Network.Company Information



Cable Packing Details



  • 300m/easy pull box/Outer Carton
  • 305m/easy pull box/Outer Carton
  • 100M/easy pull box
  • 500m/wooden reel/box
  • About Lansan:
  •
  • LANSAN Intelligent Structure Cabling products include shielded and unshielded
    Category 5E, Category 6, Category 6A and Category 7 and all series fiber optic
    products.

  • Widely used at Voice data, Graphic image, Multi-media, Security monitoring and other
    data transmission.

  • Combined with keystone Jack Patch cords, and patch panel, it provides
    excellent and stable performance.

  • Lots of successful project cases in worldwide finance, education, health care,
    government buildings and other important industries.
