CCC HDPE Cat5e Lan Cable 24AWG Copper UTP ANATEL Unshield

Place of Origin China
Brand Name OEM/ODM/LANSAN
Certification UL/ CE/ ETL/ ROHS/ ANATEL
Model Number CAT5E UTP
Minimum Order Quantity 100 Rolls
Price Negotiation
Packaging Details 305 meters/ box,500 meters/ drum
Delivery Time 15-25 Work Day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability 5000 Box /Day
Product Details
Conductor 24AWG Solid Bare Copper Insulation HDPE
Jacket PVC (polyvinyl Chloride) Name Un-shielded Ethernet Cable
Fire Rating CMX/ CMG/ CM/ CMR/ CMP Cord 4 Pairs
High Light

CCC HDPE Cat5e Lan Cable

,

24AWG Copper Cat5e Lan Cable

,

ANATEL Unshield Cat5e Ethernet Cable

Leave a Message
Product Description

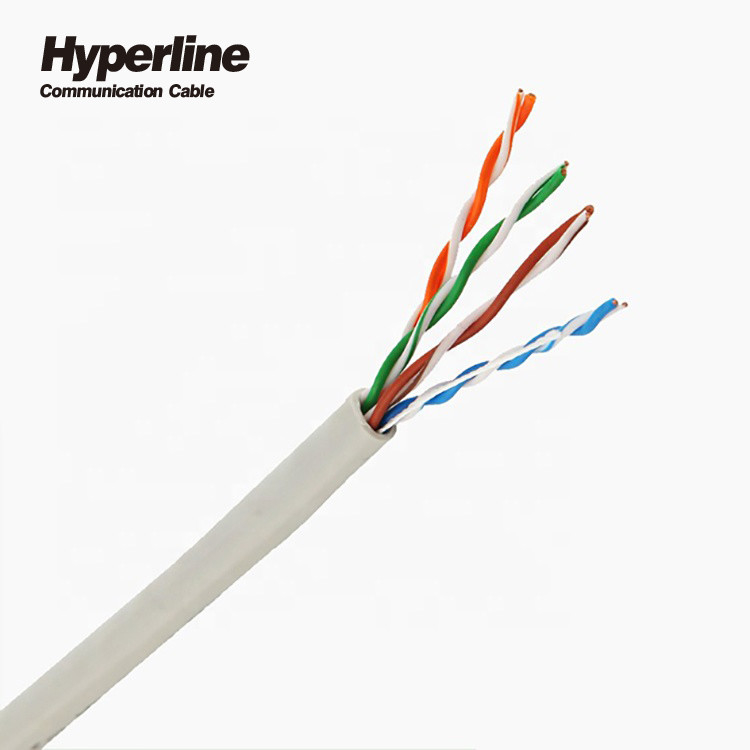

Ethernet cable 24AWG 100Mhz Solid Bare Copper Unshield Cat5e UTP Lan Network Cable Pass Fluke





Description



  • ​Category 5E U/UTP 100Mhz unshield solution provide higher performance and more stable transmission rate than Category 5.
  • Cat5e U/UTP Cable has guaranteed perfoemance to 100 Mhz and meets TIA568 C.2 specification.
  • Combined with Unshield Cat5e keystone Jack Patch cords, and patch panel, it provides excellent and stable performance.
  • The solution is for hospital, government manufacturingand other environments.



Specification



  No. of Cord   4 Pairs
  Conductor   Material   Bare Copper
  Construction   1/0.50 ± 0.008 mm
  Insulation   Material   HDPE
  Filler   /
  Shield   Material   /
  Braiding   /
  Drain Wire   Material   /
  Rip Cord   Nylon
  Jacket   Material   PVC
  O.D.   5.0 ± 0.1 mm
  Color   Customized
  Marking   Customized
  Insulation Resistance   Min. 5000 mega ohms-km at 20℃
  Dielectric Test   1000V DC /1 min ; No Breakdown
  Bend Radius   4 x cable diameter
  Operating Temperature   -20℃ ~ 80℃



Features



  • Independently tested and verrified by ETL
  • Humanized Design
  • Full series Keystone Jack supported
  • Quick Installation design avaiable

Comptitive Advantage

  • For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.
  • For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.
  • For production capacity, we could produce 30 million meters cable monthly, which will assure you of prompt delivery of the goods.
  • Certificates: ISO, CE, CCC,ETL, RoHS ,ANATEL & UL approval.
