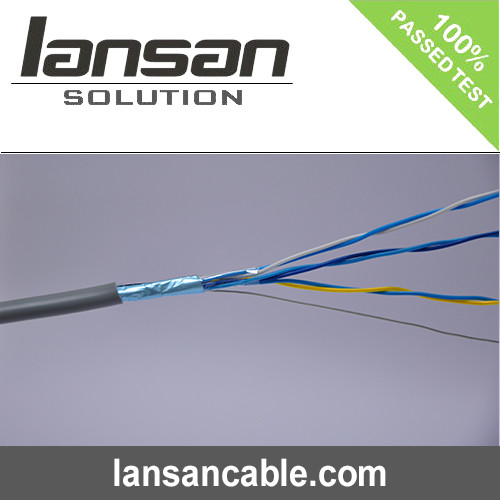

HDPE PVC Cat5e Ethernet Cable 100MHZ PE Anti UV 24AWG AI Mylar

Product Details

Place of Origin: China

Brand Name: OEM/ ODM/ Lansn

Certification: UL/ CE/ ETL/ ROHS/ ANATEL

Model Number: CAT5E FTP

Payment & Shipping Terms

Minimum Order Quantity: 50 Boxes

Price: Negotiation

Packaging Details: 305 meter/box

Delivery Time: 12-15 Work Day

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal

Supply Ability: 5000 Box/Day

Get Best Price
Highlight:

HDPE PVC Cat5e Ethernet Cable

,

100MHZ PE Cat5e Ethernet Cable

,

AI Mylar Cat5e Utp Cable

Conductor:
0.511 Solid Bare Copper
Insulation:
HDPE
Cord:
4Pairs
Shiled:
Al Foil
Jacket:
PVC + PE
Color:
Customized
Conductor:
0.511 Solid Bare Copper
Insulation:
HDPE
Cord:
4Pairs
Shiled:
Al Foil
Jacket:
PVC + PE
Color:
Customized
HDPE PVC Cat5e Ethernet Cable 100MHZ PE Anti UV 24AWG AI Mylar


HDPE PVC PE Anti UV 24AWG cat5e network ethernet cable Outdoor Used Single Jacket 100MHZ



Electrial characteristics



  • Communicate rate: 100MHZ
  • Insulated Resistance: ≥5000MΩ.km at 20°C
  • Working temperatures: -20 to 75°C
  • Impedance: 9.38 Ω /100M
  • Reference standard: YD/T 1019-2013; UL444; UL1581;TIA/EIA-568B;IEC 60332-1 ; ISO/IEC11801; (Performance and superior to the above standards)
  • Electrical characteristics:
  • Communicate rate: 100 MHZ
  • Insulated Resistance: ≥5000MΩ km at 20°C
  • Working temperatures: -20 to 75°C
  • Impedance: 9.38 Ω /100M

.

Specification


  No. of Cord   4 Pairs
  Conductor   Material   BC
  Construction   1/0.51± 0.008mm
  Insulation   Material   HDPE
  Filler   /
  Shield   Material   AI-Mylar
  Braiding   /
  Drain Wire   Material   Aluminum Magnesium Metal
  Rip Cord   Nylon
  Jacket   Material   PE
  O.D.   6.6 ± 0.30mm
  Color   Customized
  Marking   Customized
  Insulation Resistance   Min. 5000 mega ohms-km at 20℃
  Dielectric Test   1000V DC /1 min ; No Breakdown
  Temperature Rating   60℃
  Operating Temperature   -20℃ ~ 80℃
  Mutual Capacitance   5.8nF/100m


Application



  • Ethernet;
  • 10 Base-TX;
  • ATM;
  • Trunk Cabling;
  • Widely apply to network wiring structure and transmission media,such as audio,video,digital communication,message and so on.



Competitive Advantage


  • For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.
  • For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.
  • For production capacity, we could produce 30 million meters cable monthly, which will assure you of prompt delivery of the goods.
  • Certificates: ISO, CE, CCC,ETL, RoHS ,ANATEL & UL approval.​
