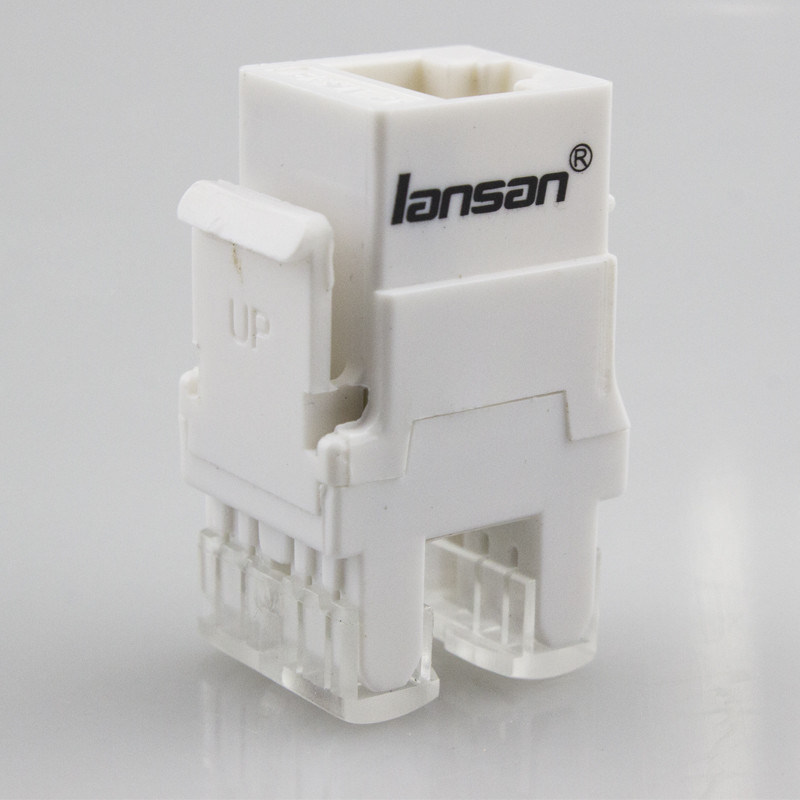

UTP Unsheild 26AWG Cat6 Patch Panel PBT RJ45 Socket

  • UTP Unsheild 26AWG Cat6 Patch Panel PBT RJ45 Socket
  • UTP Unsheild 26AWG Cat6 Patch Panel PBT RJ45 Socket
  • UTP Unsheild 26AWG Cat6 Patch Panel PBT RJ45 Socket
  • UTP Unsheild 26AWG Cat6 Patch Panel PBT RJ45 Socket
Place of Origin China
Brand Name OEM / ODM / LANSAN
Certification CE / ROHS / UL / ISO / ETL / Anatel
Model Number Cat6 UTP 24 Port Patch Panel
Minimum Order Quantity 100 Piece
Price Negotiate
Packaging Details 1 Pcs Per Box
Delivery Time 12-15 Working Day
Payment Terms L/C, T/T, Western Union
Supply Ability 20000 Pcs Per Day
Product Details
Type RJ45 Socket Patch Panel Nickle 50U Gold-Plated
Color Black Measure 1U Rack 19 Inch
Category Cat6 RJ45 Keystone Jack Sheild Unsheild
Termination Accepts 22,24 26 AWG Solid Wires Certification ROHS/UL
High Light

Unsheild Cat6 Patch Panel

,

26AWG Cat6 Patch Panel

,

PBT RJ45 Socket Patch Panel
Leave a Message
Product Description



24 Port RJ45 Cat6 Unshielded UTP 8-in-1 Station ID Modular Patch Panel





UTP Cat6 24 ports patch panel with quick tool design allows installer to install in the most efficient way
It is compatible with full series keystone Jack, included normal type and quick tool type
Combined with UTP LAN cable, Patch cords, and Keystone jack, it provide excellent compatible performance and extra DB value for full series cabling system

FEATURES



* Quick installation design



* Full series keystone Jack supported



* Back Frame for management

SPECIFICATION

Electrical:

1. Voltage rating: 125 VAC RMS



2. Current rating: 1.5 AMP



3. Contact resistance: 100 milliohms Max



4. Insulation resistance: 1000 megohms Min @ 500 DC



5. Dielectric strength: 750 vac rms 60hz,1m Min



Environmental:



1. Storage: -40° to + 70°



2. Operation: -10° to + 60°



Conform to tia/eia 568b category 6



Mates with modular plug conforming to FCC part 68


Mechanical:

1. Housing material : PBT+15%



2. Panel frame: powder coating in black color


3. Idc material: pc,terminal:phosphor bronze,tin plating



4. RJ45 jack life: 750 times Min


5. Idc life: 200 times Min

6. Wire: AWG 24~26



7. Tia cat 6 perm. link test: worst pair next margin ≥ 5.0db


8. Retentiveness of insertion structure : 50n 60±5s

Category 6 Characteristic:



Frequency Near-end cross talk db. Min Return loss db. Min Alternation db. Max
1.0 MHZ 65.0 35.5 0.1
4.0 MHZ 65.0 35.5 0.1
8.0 MHZ 64.9 35.5 0.1
10.0 MHZ 63 35.5 0.1
16.0 MHZ 58.9 35.5 0.2
20.0 MHZ 57.0 34.0 0.2
25.0 MHZ 56.0 32.0 0.2
31.25 MHZ 53.0 30.1 0.2
62.5 MHZ 47.0 24.0 0.3
100.0 MHZ 43.0 20.0 0.4


STANDARDS COMPLIANCE

* TIA 568 C.2
* ISO 11801
* UL Llisted



Competitive Advantage

  • For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.
  • For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.
  • For production capacity, we could produce 30 million meters cable monthly, which will assure you of prompt delivery of the goods.
