Product Details
Place of Origin: CHINA
Brand Name: LANSAN/OEM
Certification: UL/ETL/CPR/ANATEL/CE/ROHS/ISO9001
Model Number: Cat5e
Payment & Shipping Terms
Minimum Order Quantity: 100boxes 305m/box
Price: USD:20~60/BOX
Packaging Details: 305/box 42×37×37mm
Delivery Time: 14~20 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100000000 per month
Color: |
Green |
Outer Jacket: |
LSZH |
Conductor: |
24AWG |
Material: |
BC |
Type: |
Cat5e |
Shielded: |
UTP |
Color: |
Green |
Outer Jacket: |
LSZH |
Conductor: |
24AWG |
Material: |
BC |
Type: |
Cat5e |
Shielded: |
UTP |

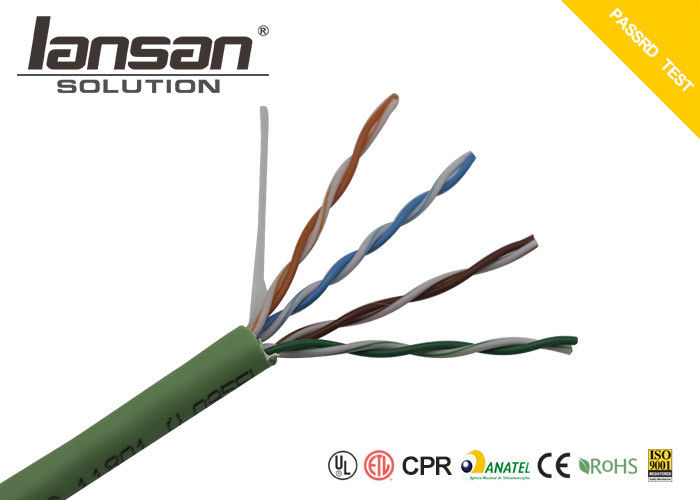

LSZH Jacket CAT5E UTP 24AWG Bare Copper
Description
• Cat5e UTP 24AWG LSZH are made in flexible twisted conductor.
• Applicable to network.
• A variety of colors make the network installation and color-code more easily.
• Constructed with high-quality cable during installation and provides strain-relief.
Specification:
| ITEM | CAT5E UTP | |
| No. of Conductor | 4 Pairs | |
| Conductor | Material | Bare Copper Solid |
| Construction | 1 / 0.511± 0.008 mm | |
| Insulation | Material | Polyethylene |
| Thickness | 0.20mm | |
| Diameter | 0.91 ±0.05mm | |
| Inner Layer | Direction | S |
| Pitch REF | 30mm underneath | |
| Outside Layer | Direction | S |
| Pitch REF | 90±10mm | |
| Rip Cord | Material | Nylon |
| Jacket | Material | LSZH |
| Thickness | 0.55mm | |
| Diameter | 5.1 ± 0.2 mm | |
| Color | Green | |
| Marking | Optional | |
| ELECTRICAL PROPERTIES | ||
| ITEM | ||
| Insulation Resistance | Min. 5000 mega ohms-km at 20℃ | |
| Dielectric Test | 1000V DC /1 min ; No Breakdown | |
| Temperature Rating | 60℃ | |
| Voltage Rating | 30V | |
Features
• Independently tested and verified by ETL
• Humanized Design
• The outer jacket is made of environmental material.
• Separated structure inside the cable ensures the stable transmission of data.
Competitive Advantage
• For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.
• For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.
• For production capacity, we could produce 30 million meters cable monthly, which will assure you of prompt delivery of the goods.
• Certificates: UL/ETL/CPR/ANATEL/CE/ROHS/ISO9001.
Our service:
1. Q: Are you the factory or the trading company?
A: We are the factory.
2. Q: How long is your guarantee Period?
A: We uaually offer 1 year guarantee for our general products.
3. Q: How can I get the samples?
A: You can make the sample order and pay it.
But the samples fee will be return to you when you place the offical order.
4. Q: Where is your factory? How can we visit your factory?
A: Our factory is located in Shenzhen, Guangdong. You could reach here by train and by air.
We can pick you up in the airport and the railway station.
5. Q; What is your MOQ?
A: It`s base on the cable type or wire type. Please contact me.
