Product Details
Place of Origin: China
Brand Name: OEM/ ODM/ LANSAN
Certification: ETL/ CE/ UL/ ANATEL/ RoHS
Model Number: CAT7 F/FTP
Payment & Shipping Terms
Minimum Order Quantity: 10000 Pcs
Price: Negotiation
Packaging Details: 1Pcs Per PE Bag
Delivery Time: 10-12 Work Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000 Boxes/Day
Conductor: |
28AWG Bare Copper |
Material Shape: |
Round |
Shiled: |
Al Foil |
Color: |
Customized |
Test: |
Fluke |
Application: |
Computer Networks |
Conductor: |
28AWG Bare Copper |
Material Shape: |
Round |
Shiled: |
Al Foil |
Color: |
Customized |
Test: |
Fluke |
Application: |
Computer Networks |

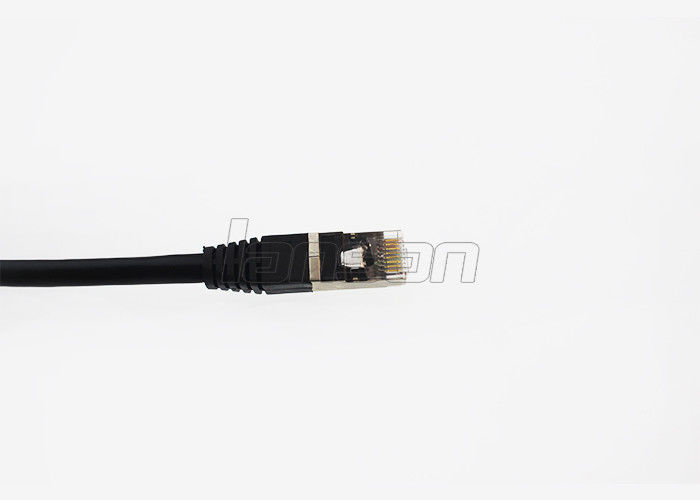

10g 600MHz Cat7 F/FTP Patch Cord ISO/IEC SSTP Ethernet Cable 1.5m/5ft
Description
Lansan patch cords with high-quality electric and mechanical properties.
Meeting high-end demand and achieve superior shielding effect by virtue of aluminum foil.
Constructed with high-quality cable and a shortened body plug, prevents unwanted cable snaps during installation and provides strain-relief.
Easy to insert and remove cables in high density applications.
Designed for network adapters, hubs, switches, routers, DSL/cable modems and patch panels.
Specification
| No. of Cord | 4 Pairs | |
| Conductor | Material | BC |
| Construction | 24AWG 7/0.20mm | |
| Insulation | Material | FM-PE |
| Filler | / | |
| Shield | Material | Al - Mylar |
| Braiding | Aluminum Magnesium Ally Solid | |
| Drain Wire | Material | Aluminum Magnesium Metal |
| Rip Cord | Nylon | |
| Jacket | Material | ROHS |
| O.D. | 7.0 ± 0.3mm | |
| Color | Customized | |
| Marking | Customized | |
| Mutual Capacitance | 5.8nF/100m | |
| Characteristic Impedance | 100Ω ±15%,1~ 350MHz | |
| Conductor DC Resistance | 9.3Ω/100m Max. | |
| Voltage | 300V | |
| Delay Skew | 25ns/100m Max. | |
