Product Details
Place of Origin: China
Brand Name: OEM/ ODM/ LANSAN
Certification: ETL/ CE/ UL/ ANATEL/ RoHS
Model Number: CAT6 FTP
Payment & Shipping Terms
Minimum Order Quantity: 5000 Pcs
Price: Negotiation
Packaging Details: 400 pcs/box
Delivery Time: 10-12 Work Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000 Boxes/Day
Conductor: |
26AWG Bare Copper |
Insulation: |
HDPE |
Cord: |
4 Pairs |
Jacket: |
PVC |
Name: |
Cat6 Patch Cable |
Application: |
Communication |
Conductor: |
26AWG Bare Copper |
Insulation: |
HDPE |
Cord: |
4 Pairs |
Jacket: |
PVC |
Name: |
Cat6 Patch Cable |
Application: |
Communication |

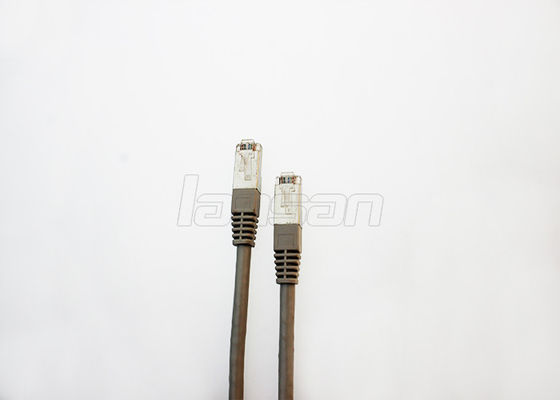

Flexible Cat6 FTP Sranded Copper Patch Cord RJ45 50U Gold Plated
Description
Lansan Patch Cords are made in flexible stranded conductor with snag-less booted
design.
Designed for network adapters, hubs, switches, routers, dsl/cable modems and patch
panels.
Constructed with high-quality cable and a shortened body plug, prevents unwanted
cable snaps during installation and provides strain-relief.
A variety of colors make the network installation and color-code more easily.
Easy to insert and remove cables in high density applications.
Specification
| No. of Cord | 4 Pairs | |
| Conductor | Material | BC |
| Construction | 26AWG 7/0.16mm | |
| Insulation | Material | HDPE |
| Filler | / | |
| Shield | Material | Aluminum Mylar Spirally Wrapped |
| Braiding | / | |
| Drain Wire | Material | Aluminum Magnesium Metal |
| Rip Cord | Nylon | |
| PE Cross | Material | Polyethy Lene |
| Construction | 4.4mm*4.4mm | |
| Jacket | Material | PVC |
| O.D. | 6.0 ± 0.2mm | |
| Color | Customized | |
| Marking | Customized | |
| Mutual Capacitance | 5.8nF/100m | |
| Characteristic Impedance | 100Ω ±15%,1~ 350MHz | |
| Conductor DC Resistance | 9.3Ω/100m Max. | |
| Voltage | 300V | |
| Delay Skew | 25ns/100m Max. | |
