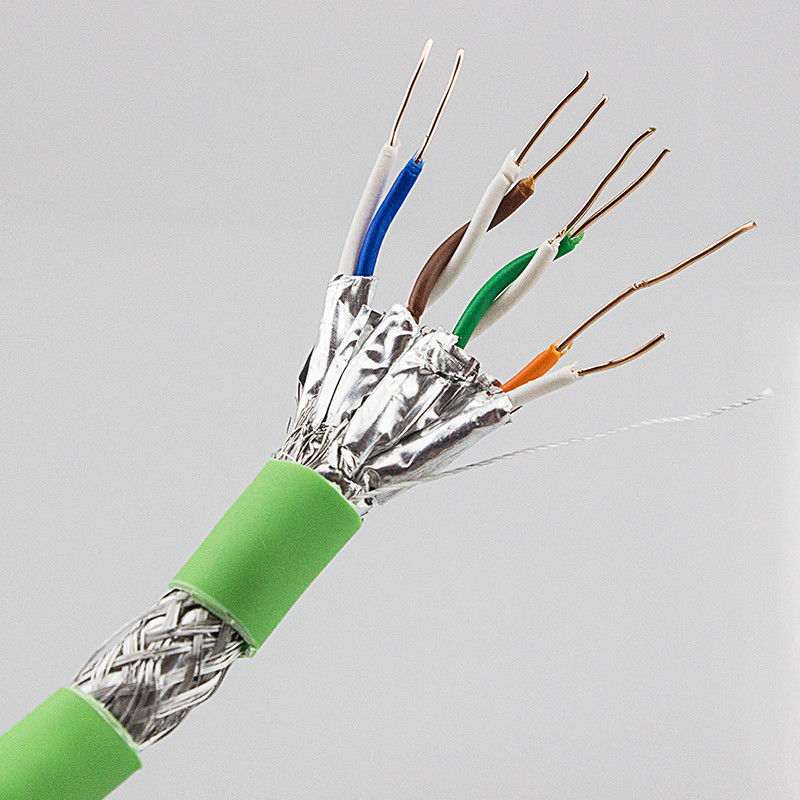

Ethernet SFTP 23AWG Cat6a Network Cable Al Foil Shielded Copper Braiding

Place of Origin China
Brand Name OEM/ ODM/ Lansan
Certification UL/ CE/ ETL/ ROHS/ ANATEL
Model Number CAT6A S/FTP
Minimum Order Quantity 100 Rolls
Price Negotiation
Packaging Details 305 meter/roll
Delivery Time 20-25 Work Day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal
Supply Ability 5000 Rolls/Day
Product Details
Conductor 0.57mm Solid Bare Copper Insulation Cat6a Shielded Cable
Cord 4 Twisted Pairs Shiled Al Foil & Braiding
Jacket ROHS PVC, LSZH Color Customize
High Light

Al Foil Ethernet Cable SFTP


cat6 rj45 sftp shielded ethernet cable


4Pairs 23AWG Cat6a Network Cable

Leave a Message
Product Description


Ethernet cable Cat6a Cable Network Al Foil Shielded Copper Braiding SFTP 23 AWG LSZH





  • LANSAN Intelligent Structure Cabling products include shielded and unshielded
    Category 5E, Category 6, Category 6A and Category 7 and all series fiber optic

  • Widely used at Voice data, Graphic image, Multi-media, Security monitoring and other
    data transmission.

  • Combined with keystone Jack Patch cords, and patch panel, it provides
    excellent and stable performance.

  • The solution is for hospital, government manufacturingand other environments.


  No. of Cord   4 Pairs
  Conductor   Material   BC
  Construction   1/0.57± 0.008mm
  Insulation   Material   HDPE
  Filler   /
  Shield1   Material   Single side AL foil which electic side toward outside
  Coveragae   ≧25%
  Shield2   Material   Single side AL foil which electic side toward iutside
  Coveragae   ≧25%
  Drain Wire   Material   Aluminum Magnesium Metal
  Rip Cord   Nylon
  Jacket   Material   ROHS
  O.D.   8.0 ± 0.3mm
  Color   Customized
  Marking   Customized
  Insulation Resistance   Min. 5000 mega ohms-km at 20℃
  Dielectric Test   1000V DC /1 min ; No Breakdown
  Temperature Rating   60℃
  Operating Temperature   -20℃ ~ 80℃
  Bend Radius   4 x cable diameter



  • Humanized Design
  • Full series Keystone Jack supported
  • Quick Installation design avaiable

Competitive Advantage

  • For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.
  • For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.
  • For production capacity, we could produce 30 million meters cable monthly, which will assure you of prompt delivery of the goods.
  • Certificates: ISO, CE, CCC,ETL, RoHS ,ANATEL & UL approval.​
