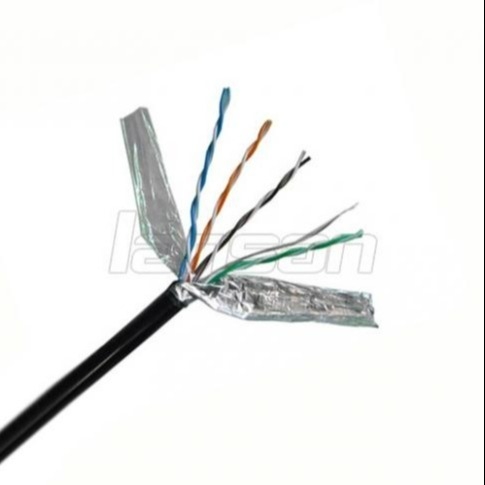

BC UTP Cat6 Lan Cable 23AWG HDPE Al Mylar For Telecommunication

Place of Origin CHINA
Brand Name OEM/ ODM/ LANSAN
Certification UL/ROSH/CE/ANATEL/ISO/CPR/ETL
Model Number CAT6
Minimum Order Quantity 50Rolls
Price Negotiation
Packaging Details 305m/Box
Delivery Time 10-12 work days
Payment Terms L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability 5000rolls/day
Product Details
Conductor Solid Copper Jacket PVC + PE
Test Fluke Type Cat 6
Application Telecommunication Name Cat6 Lan Cable
High Light

BC UTP Cat6 Lan Cable

,

23AWG HDPE Cat6 Lan Cable

,

Al Mylar Utp Lan Cable

Leave a Message
Product Description

BC Cat6 UTP Lan Cable HDPE Al Mylar 23AWG



Description

  • LANSAN Intelligent Structure Cabling products include shielded and unshielded
    Category 5E, Category 6, Category 6A and Category 7 and all series fiber optic
    products.

  • Widely used at Voice data, Graphic image, Multi-media, Security monitoring and other
    data transmission.

  • Combined with keystone Jack Patch cords, and patch panel, it provides
    excellent and stable performance.

  • The solution is for hospital, government manufacturingand other environments.

Specification



Item no CAT6 UTP Filler Jelly
Conductor Material Pure copper Shield Material Aluminum Mylar Spirally Wrapped
Conductor AWG 23 Insulation Resistance Min. 5000 mega ohms-km at 20℃
Conductor Diameter 0.57mm Dielectric Test 1000V DC /1 min ; No Breakdown
Insulation Materia HDPE Temperature Rating 60℃
Jacket Diameter 7.2 ± 0.2mm Drain Wire Aluminum Magnesium Metal
jacket color customize Operating Temperature -20℃ ~ 80℃
No. of Cord 4 Pairs Jacket Material PVC+PE
Rip Cord Nylon Use Outdoor
printing standard or as customize
package Packing: 305 meter/roll
supply Both in stock and make to order. According to customer's need.
port by sea:shenzhen  or Negotiation



Applications



  • Computer network cabling project
  • Broadband network communication
  • Ethernet network
  • Audio and data transmission
  • Ideal for voice, data, network installations, camera installations


Advantages



  • Competitive factory
  • OEM and ODM services are provided
  • Prompt delivery
  • Pass fluke test
