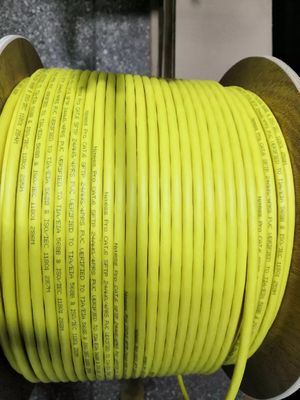

550Mzh BC Nylon Cat6 UTP Cable Polyethylene 4 Pair Cat6 Cable
| Place of Origin | China |
|---|---|
| Brand Name | OEM/ ODM/ Lansn |
| Certification | UL/ CE/ ETL/ ROHS/ ANATEL |
| Model Number | CAT6 UTP |
| Minimum Order Quantity | 50 Rolls |
| Price | Negotiation |
| Packaging Details | 305 meter/roll |
| Delivery Time | 12-15 Work Day |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal |
| Supply Ability | 5000 Rolls/Day |
Product Details
| Conductor | 0.57mm Solid Copper | Name | Category 6 Utp Cable |
|---|---|---|---|
| Cord | 4Pairs | Shiled | Al Foil |
| Jacket | RHOS | PE Cross | Polyethy Lene |
| Rip Cord | Nylon | Color | Customized |
| High Light | 550Mzh Cat6 UTP Cable,BC Nylon Cat6 UTP Cable,Polyethylene 4 Pair Cat6 Cable |
||
Product Description
550Mzh RHOS Cat6 Utp Lan Cable Four Pair Solid Wire Fluke Pass Communication Cable
Product Description
- High performance Cat 6 cable, ETL listed, bulk Ethernet cable provides universal connectivity for wiring your home or office for high-speed network, in-wall rated (cm)
- Future-proof your network for 10-Gigabit Ethernet (backwards compatible with any existing Fast Ethernet and Gigabit Ethernet)
- Compatible with 10/100 Base-T networks and feature enhanced 550 MHz bandwidth for distributing data, voice, and video at high-speeds
- Made with 100% pure copper enhance cable and comply with ETL specifications for communications cables; meets or exceeds Category 6 performance in compliance with the ANSI/TIA.568-C.2 standard
- Stranded and durable Cat6 cable with high bandwidth of up to 550 MHz guarantees high-speed data transfer for server applications, cloud computing, video surveillance/ HD video streaming
Specification
| No. of Cord | 4 Pairs | |
| Conductor | Material | BC |
| Construction | 23AWG 1/0.57 ± 0.008mm | |
| Insulation | Material | HDPE |
| Filler | / | |
| Shield | Material | / |
| Braiding | / | |
| Drain Wire | Material | / |
| Rip Cord | Nylon | |
| PE Cross | Material | Polyethy Lene |
| Construction | 4.4mm*4.4mm | |
| Jacket | Material | ROHS |
| O.D. | 6.2 ± 0.25mm | |
| Color | Customized | |
| Marking | Customized | |
| Insulation Resistance | Min. 5000 mega ohms-km at 20℃ | |
| Dielectric Test | 1000V DC /1 min ; No Breakdown | |
| Temperature Rating | 60℃ | |
| Operating Temperature | -20℃ ~ 80℃ | |
| Bend Radius | 4 x cable diameter | |
Features
- Humanized Design
- Full series Keystone Jack supported
- Quick Installation design avaiable
Competitive Advantage
- For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.
- For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.
- For production capacity, we could produce 30 million meters cable monthly, which will assure you of prompt delivery of the goods.
- Certificates: ISO, CE, CCC,ETL, RoHS ,ANATEL & UL approval.
