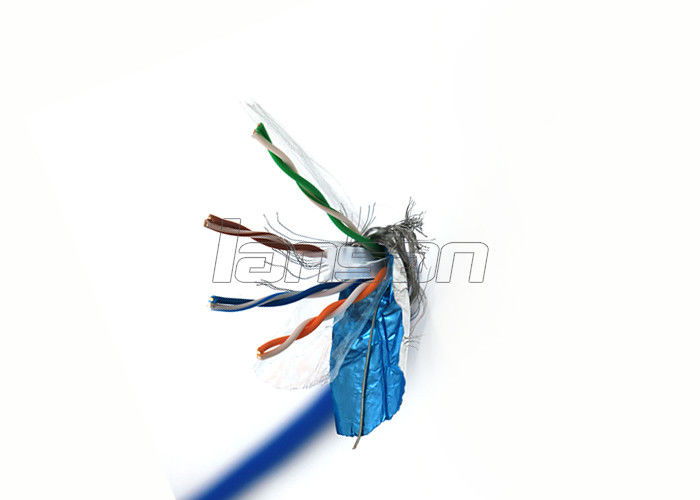

Bare Copper PVC LSZH 23AWG Category 6 Ethernet Cable

  • Bare Copper PVC LSZH 23AWG Category 6 Ethernet Cable
  • Bare Copper PVC LSZH 23AWG Category 6 Ethernet Cable
Place of Origin China
Brand Name OEM/ ODM/ Lansn
Certification UL/ CE/ ETL/ ROHS/ ANATEL
Model Number CAT6 S/FTP
Minimum Order Quantity 50 Rolls
Price Negotiation
Packaging Details 305 meter/roll
Delivery Time 12-15 Work Day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal
Supply Ability 5000 Rolls/Day
Product Details
Conductor 0.57mm Solid Bare Copper Insulation HDPE
Cord 4 Twisted Pairs Shiled Al Foil
Jacket LSZH Color Customize
High Light

Network Cat6 SFTP Cable

,

HDPE Category 6 Lan Cable

,

Al Foil Category 6 Ethernet Cable
Leave a Message
Product Description

Network Cat6 SFTP Cable , Bare Copper Indoor 23AWG PVC/LSZH Category 6 Ethernet Cable



Description

  • LANSAN Intelligent Structure Cabling products include shielded and unshielded
    Category 5E, Category 6, Category 6A and Category 7 and all series fiber optic
    products.

  • Widely used at Voice data, Graphic image, Multi-media, Security monitoring and other
    data transmission.

  • Combined with keystone Jack Patch cords, and patch panel, it provides
    excellent and stable performance.

  • The solution is for hospital, government manufacturingand other environments.

Specification


  No. of Cord   4 Pairs
  Conductor   Material   BC
  Construction   1/0.57± 0.008mm
  Insulation   Material   HDPE
  Filler   /
  Shield1   Material   Single side AL foil which electic side toward outside
  Coveragae   ≧25%
  Shield2   Material   Single side AL foil which electic side toward iutside
  Coveragae   ≧25%
  Drain Wire   Material   Aluminum Magnesium Metal
  Rip Cord   Nylon
  Jacket   Material   LSZH/PVC
  O.D.   8.0 ± 0.3mm
  Color   Customized
  Marking   Customized
  Insulation Resistance   Min. 5000 mega ohms-km at 20℃
  Dielectric Test   1000V DC /1 min ; No Breakdown
  Temperature Rating   60℃
  Operating Temperature   -20℃ ~ 80℃
  Bend Radius   4 x cable diameter



Packing

  • Packing meter: 305m/easy pull box
  • Inner: easy pull box, wooden reel, plastic reel, paper reel available
  • Outer: carton box, pull out box, pallet available or according to customer's requirements



Applications

  • Horizontal twisted pair cable for digital communication application, is mainly used for wiring between telecom lead-outs and floor distributor comprehensive system, as well as wiring between user telecom lead-outs and floor distributor comprehensive system, is meets requirements of 100MHz data communication
  • Standard wiring length is 90m coded according to ANSI/TIA/EIA-568-B color coded
