Product Details
Place of Origin: China
Brand Name: Lansan Or OEM
Certification: ETL, UL,ISO,CE,ROHS,Anatel
Model Number: Cat6A SSTP
Payment & Shipping Terms
Minimum Order Quantity: 500PCS
Price: Negotiate
Packaging Details: 1 Pcs Per PE BAG
Delivery Time: 12-15 Working Days
Payment Terms: Western Union, L/C, T/T
Name: |
Cat6a Sstp Cable |
Moel: |
RJ45 |
Color: |
Option |
Package: |
PE Bag |
Copper Type: |
Standred |
Material Shape: |
Round |
Shield: |
SSTP |
Jacket Material: |
PVC |
Name: |
Cat6a Sstp Cable |
Moel: |
RJ45 |
Color: |
Option |
Package: |
PE Bag |
Copper Type: |
Standred |
Material Shape: |
Round |
Shield: |
SSTP |
Jacket Material: |
PVC |

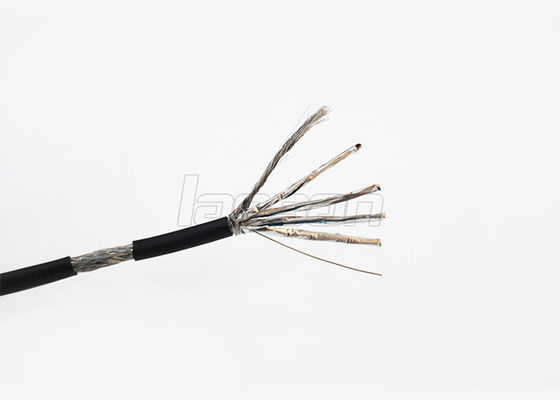

SSTP CAT6A Patch Cord PVC with Stranded Pure Copper Conductor
Description
Lansan patch cords with high-quality electric and mechanical properties.
Meeting high-end demand and achieve superior shielding effect by virtue of aluminum foil.
Constructed with high-quality cable and a shortened body plug, prevents unwanted cable snaps during installation and provides strain-relief.
Easy to insert and remove cables in high density applications.
Designed for network adapters, hubs, switches, routers, DSL/cable modems and patch panels.
Specification
| No. of Cord | 4 Pairs | |
| Conductor | Material | BC |
| Construction | 24AWG 7/0.20mm | |
| Insulation | Material | FM-PE |
| Filler | / | |
| Shield | Material | Al - Mylar |
| Braiding | Aluminum Magnesium Ally Solid | |
| Drain Wire | Material | Aluminum Magnesium Metal |
| Rip Cord | Nylon | |
| Jacket | Material | ROHS |
| O.D. | 6.8 ± 0.3mm | |
| Color | Customized | |
| Marking | Customized | |
| Mutual Capacitance | 5.8nF/100m | |
| Characteristic Impedance | 100Ω ±15%,1~ 350MHz | |
| Conductor DC Resistance | 9.3Ω/100m Max. | |
| Voltage | 300V | |
| Delay Skew | 25ns/100m Max. | |
Features
Competitive Advantage
