BC HDPE Cat6 Lan Cable Indoor Outdoor High Speed PVC LSZH

  • BC HDPE Cat6 Lan Cable Indoor Outdoor High Speed PVC LSZH
Place of Origin China
Brand Name OEM/ ODM/ Lansn
Certification UL/ CE/ ETL/ ROHS/ ANATEL
Model Number CAT6 SFTP
Minimum Order Quantity 50 Rolls
Price Negotiation
Packaging Details 305 meter/roll
Delivery Time 12-15 Work Day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal
Supply Ability 5000 Rolls/Day
Product Details
Conductor 0.565mm Solid Copper Insulation HDPE
Cord 4Pairs Shiled Al Foil
Jacket PVC/LSZH PE Cross Polyethy Lene
Braiding Aluminum Magnesium Ally Solid Color Optional
High Light

BC HDPE Cat6 Lan Cable

,

0.565mm Copper Cat6 Lan Cable

,

PVC LSZH 4 Pair Cat6 Cable
Leave a Message
Product Description



100% Bare Copper Indoor / Outdoor Cat6 High Speed Lan Cable PVC/LSZH Jacket 305m HDPE Insulation



Description



  • LANSAN Intelligent Structure Cabling products include shielded and unshielded
    Category 5E, Category 6, Category 6A and Category 7 and all series fiber optic
    products.

  • Widely used at Voice data, Graphic image, Multi-media, Security monitoring and other
    data transmission.

  • Combined with keystone Jack Patch cords, and patch panel, it provides
    excellent and stable performance.

  • The solution is for hospital, government manufacturingand other environments.

Specification


  No. of Cord   4 Pairs
  Conductor   Material   BC
  Construction   23AWG 1/0.565± 0.006mm
  Insulation   Material   HDPE
  Filler   Jelly
  Shield   Material   Aluminum Mylar Spirally Wrapped
  Braiding   Aluminum Magnesium Ally Solid
  Drain Wire   Material   Aluminum Magnesium Metal
  Rip Cord   Nylon
  PE Cross   Material   Polyethy Lene
  Construction   4.4mm*4.4mm
  Jacket   Material   PVC/LSZH
  O.D.   7.5 ± 0.2mm
  Color   Customized
  Marking   Customized
  Mutual Capacitance   5.8nF/100m
  Dielectric Test   1000V DC /1 min ; No Breakdown
  Temperature Rating   60℃
  Operating Temperature   -20℃ ~ 80℃
  Velocity of Propagation   0.69



Mechanical properties

  • Elongation: minimum 300%
  • Temperature range: -20 up to 75°C
  • Tensile strength: min 1.68kg/mm²
  • Conductor resistance: maximum 13.01Ω/100m
  • Resistance unbalance: maximum 2%
  • Insulation resistance: maximum 150Ω/km
  • Mutual capacitance: maximum 5600pF/100m
  • Capacitance unbalance: maximum 330pF/100m
  • Impedance: 100±15W
  • Spark test: 2000V
  • Velocity of propagation: 67%

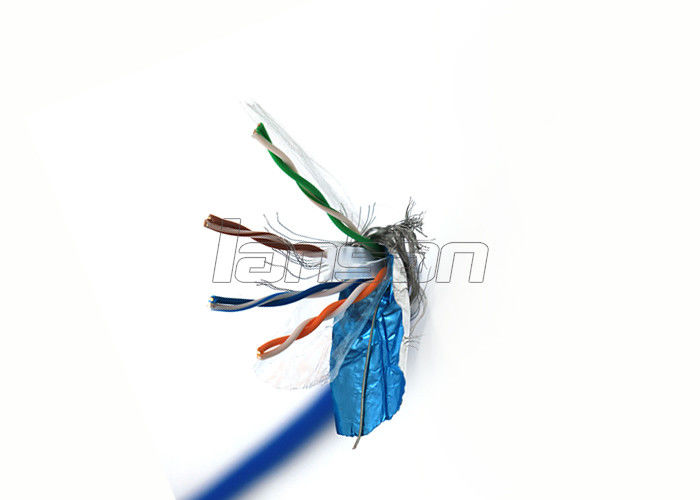

BC HDPE Cat6 Lan Cable Indoor Outdoor High Speed PVC LSZH 0
