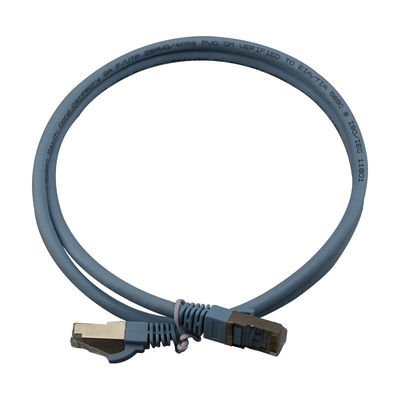

Cat6A Patch Cord 23AWG F/FTP With Full Series Keystone Jack
| Place of Origin | china |
|---|---|
| Brand Name | lansan |
| Certification | ul ,iso |
| Model Number | cat6a |
| Minimum Order Quantity | 10000pcs |
| Price | 0.1 |
| Packaging Details | pe bag and box |
| Delivery Time | 25 days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 1/40hq/day |
Product Details
Product Description
Cat6A Patch Cord 26AWG F/FTP With Full Series Keystone Jack
Description
-
Lansan patch cords with high-quality electric and mechanical properties.
-
Meeting high-end demand and achieve superior shielding effect by virtue of aluminum foil.
-
Constructed with high-quality cable and a shortened body plug, prevents unwanted cable snaps during installation and provides strain-relief.
-
Easy to insert and remove cables in high density applications.
-
Designed for network adapters, hubs, switches, routers, DSL/cable modems and patch panels.
Specification
| No. of Cord | 4 Pairs | |
| Conductor | Material | BC |
| Construction | 26AWG 7/0.16mm | |
| Insulation | Material | FM-PE |
| Filler | / | |
| Shield | Material | Al - Mylar |
| Braiding | Aluminum Magnesium Ally Solid | |
| Drain Wire | Material | Aluminum Magnesium Metal |
| Rip Cord | Nylon | |
| PE Cross | Material | Polyethy Lene |
| Construction | 4.4mm*4.4mm | |
| Jacket | Material | LSZH |
| O.D. | 7.0 ± 0.2mm | |
| Color | Customized | |
| Marking | Customized | |
| Mutual Capacitance | 5.8nF/100m | |
| Characteristic Impedance | 100Ω ±15%,1~ 350MHz | |
| Conductor DC Resistance | 9.3Ω/100m Max. | |
| Voltage | 300V | |
| Delay Skew | 25ns/100m Max. | |
Features
- Independently tested and verrified by ETL
- Humanized Design
- Full series Keystone Jack supported
- Separated structure inside the cable ensures the stable transmission of data.
Competitive Advantage
- For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.
- For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.
- For production capacity, we could produce 30 million meters cable monthly, which will assure you of prompt delivery of the goods.
- Certificates: ISO, CE, CCC,ETL, RoHS ,ANATEL & UL approval.
