Home > products > Cat5e Lan Cable > 24AWG Cat5e Lan Cable PVC PE UTP FTP CPR With Messenger Jelly

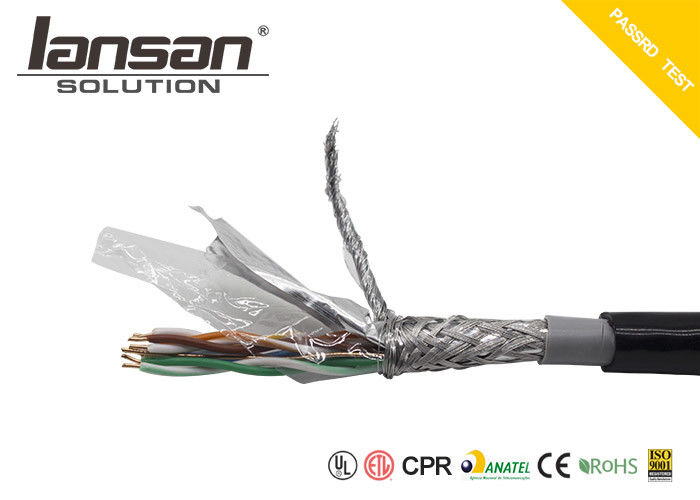

24AWG Cat5e Lan Cable PVC PE UTP FTP CPR With Messenger Jelly

Product Details

Place of Origin: CHINA

Brand Name: LANSAN/OEM

Certification: UL/ETL/CPR/ANETAL/CE/ROHS/ISO9001

Model Number: Cat5e

Payment & Shipping Terms

Minimum Order Quantity: 100boxes 305m/box

Price: Negotiation

Packaging Details: 305m/drum

Delivery Time: 15-25 working days

Payment Terms: T/T, Western Union,L/C,

Supply Ability: 10000000m/year

Get Best Price
Highlight:

Messenger Jelly Cat5e Lan Cable

,

Cat5e Lan Cable PVC PE

,

CPR Cat5e Network Cable

Material:
Copper
Color:
Customizable
Place Of Origin:
Shenzhen, China
Application:
Outdoor
Outer Jacket:
PVC+PE
Conductor:
24AWG
Material:
Copper
Color:
Customizable
Place Of Origin:
Shenzhen, China
Application:
Outdoor
Outer Jacket:
PVC+PE
Conductor:
24AWG
24AWG Cat5e Lan Cable PVC PE UTP FTP CPR With Messenger Jelly

Outdoor CAT5E Cable With Messenger And Jelly FTP 24AWG Bare Copper PVC+PE



Description:

     • LANSAN Intelligent Structure Cabling products.

     • Ourdoor Cat5e FTP 24AWG cable is made in flexible twisted conductor, applicable to outdoor.

     • Constructed with high-quality cable during installation and provides strain-relief.

      Lots of successful project cases in worldwide finance, government buildings and other industries.



Specification:

24AWG Cat5e Lan Cable PVC PE UTP FTP CPR With Messenger Jelly 0

ITEM Outdoor FTP Cat5E
No.of Conductor 4 Pair
Conductor  Material BC
Construction 1/ 0.511 ± 0.008 mm
Insulation  Material HDPE
Normal Thickness 0.24 mm
Diameter 0.98± 0.05mm
Inner Layer Direction S
Pitch REF 30mm underneath
Outside Layer Direction S
Pitch REF 100±20mm
Separator  Material Mylar
Coverage 100% coverage with 25% overlapping
Drain wire Material Aluminum Magnesium metal
Construction 1 / 0.40 ± 0.008 mm
Shielding  Material Al-Mylar
Coverage 100% coverage with 25% overlapping
Jacket  Material PVC+PE
Normal thickness 0.55mm
Diameter 6.0± 0.20 mm
Color Black
ELECTRICAL PROPERTIES
Insulation Resistance Min. 5000 mega ohms-km at 20℃
Dielectric Test 1000V DC /1 min ; No Breakdown
Temperature Rating 60℃
Voltage Rating 30V



Features:

     • Independently tested and verified by ETL

     • Humanized Design

     • Separated structure inside the cable ensures the stable transmission of data.



Competitive Advantage:

     • For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.

     • For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.

     • For production capacity, we could produce 30 million meters cable monthly, which will assure you of prompt delivery of the goods.

     Certificates: UL/ETL/CPR/ANATEL/CE/ROHS/ISO9001.



Our service:

1. Q: Are you the factory or the trading company?
    A: We are the factory.
2. Q: How long is your guarantee Period?
    A: We uaually offer 1 year guarantee for our general products.
3. Q: How can I get the samples?
    A: You can make the sample order and pay it.
But the samples fee will be return to you when you place the offical order.
4. Q: Where is your factory? How can we visit your factory?
    A: Our factory is located in Shenzhen, Guangdong. You could reach here by train and by air.
        We can pick you up in the airport and the railway station.
5. Q; What is your MOQ?
    A: It`s base on the cable type or wire type. Please contact me.
