Home > products > Cat6A Lan Cable > SFTP Copper Braiding HDPE BC Cat6A Lan Cable Al Foil 4 Twisted Pairs

SFTP Copper Braiding HDPE BC Cat6A Lan Cable Al Foil 4 Twisted Pairs

Product Details

Place of Origin: China

Brand Name: OEM/ ODM/ Lansn

Certification: UL/ CE/ ETL/ ROHS/ ANATEL

Model Number: CAT6A S/FTP

Payment & Shipping Terms

Minimum Order Quantity: 100 Rolls

Price: Negotiation

Packaging Details: 305 meter/roll

Delivery Time: 12-15 Work Day

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal

Supply Ability: 5000 Rolls/Day

Get Best Price
Highlight:

Copper Braiding Cat6A Lan Cable

,

HDPE BC Cat6A Lan Cable

,

Al Foil UTP Cat6 Cable

Conductor:
0.57mm Solid Bare Copper
Insulation:
Cat6a Shielded Cable
Cord:
4 Twisted Pairs
Shiled:
Al Foil
Jacket:
ROHS
Color:
Customize
Conductor:
0.57mm Solid Bare Copper
Insulation:
Cat6a Shielded Cable
Cord:
4 Twisted Pairs
Shiled:
Al Foil
Jacket:
ROHS
Color:
Customize
SFTP Copper Braiding HDPE BC Cat6A Lan Cable Al Foil 4 Twisted Pairs



Transmisson Cable Cat6a Foil Shield, Copper Braiding Network Cable Sftp







Description

  • LANSAN Intelligent Structure Cabling products include shielded and unshielded
    Category 5E, Category 6, Category 6A and Category 7 and all series fiber optic
    products.

  • Widely used at Voice data, Graphic image, Multi-media, Security monitoring and other
    data transmission.

  • Combined with keystone Jack Patch cords, and patch panel, it provides
    excellent and stable performance.

  • The solution is for hospital, government manufacturingand other environments.

Specification


  No. of Cord   4 Pairs
  Conductor   Material   BC
  Construction   1/0.57± 0.008mm
  Insulation   Material   HDPE
  Filler   /
  Shield1   Material   Single side AL foil which electic side toward outside
  Coveragae   ≧25%
  Shield2   Material   Single side AL foil which electic side toward iutside
  Coveragae   ≧25%
  Drain Wire   Material   Aluminum Magnesium Metal
  Rip Cord   Nylon
  Jacket   Material   ROHS PVC/ LSZH
  O.D.   8.0 ± 0.3mm
  Color   Customized
  Marking   Customized
  Insulation Resistance   Min. 5000 mega ohms-km at 20℃
  Dielectric Test   1000V DC /1 min ; No Breakdown
  Temperature Rating   60℃
  Operating Temperature   -20℃ ~ 80℃
  Bend Radius   4 x cable diameter



Features


  • Humanized Design
  • Full series Keystone Jack supported
  • Quick Installation design avaiable

Competitive Advantage


  • For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.
  • For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.
  • For production capacity, we could produce 30 million meters cable monthly, which will assure you of prompt delivery of the goods.
  • Certificates: ISO, CE, CCC,ETL, RoHS ,ANATEL & UL approval.​

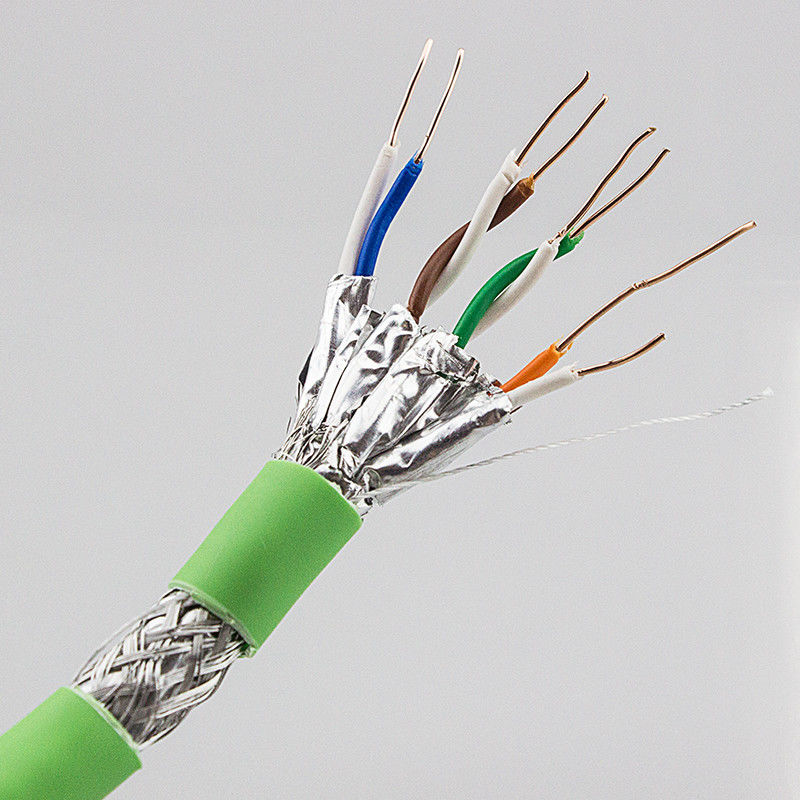

SFTP Copper Braiding HDPE BC Cat6A Lan Cable Al Foil 4 Twisted Pairs 0
