Product Details
Place of Origin: China
Brand Name: OEM/ ODM/ Lansn
Certification: UL/ CE/ ETL/ ROHS/ ANATEL
Model Number: CAT6 UTP
Payment & Shipping Terms
Minimum Order Quantity: 50 Boxes
Price: Negotiation
Packaging Details: 305 meter/box
Delivery Time: 12-15 Work Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal,
Supply Ability: 5000 Boxes/Day
Conductor: |
0.57mm Solid Copper |
Insulation: |
HDPE |
Name: |
Cat6 Utp Cable |
Shiled: |
Al Foil |
Jacket: |
LSZH |
PE Cross: |
Polyethy Lene |
Rip Cord: |
Nylon |
Color: |
Customized |
Conductor: |
0.57mm Solid Copper |
Insulation: |
HDPE |
Name: |
Cat6 Utp Cable |
Shiled: |
Al Foil |
Jacket: |
LSZH |
PE Cross: |
Polyethy Lene |
Rip Cord: |
Nylon |
Color: |
Customized |

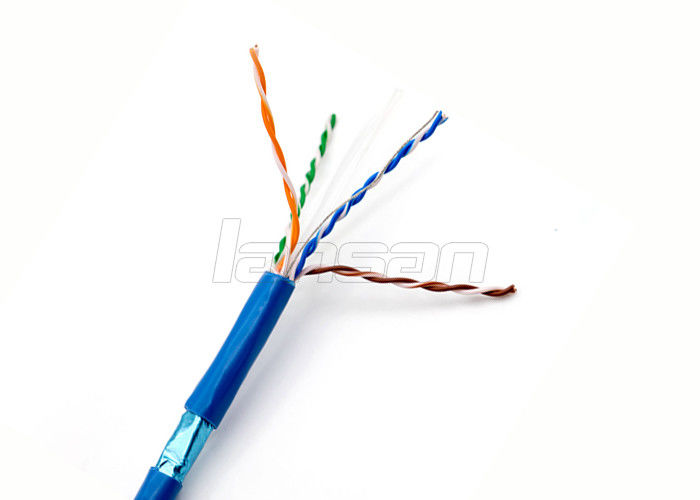

LSZH Customized Indoor Network Ethernet Cat6 UTP Cable 23 America Guage Wire 305m/pull box
Description
LANSAN Intelligent Structure Cabling products include shielded and unshielded
Category 5E, Category 6, Category 6A and Category 7 and all series fiber optic
products.
Widely used at Voice data, Graphic image, Multi-media, Security monitoring and other
data transmission.
Combined with keystone Jack Patch cords, and patch panel, it provides
excellent and stable performance.
Lots of successful project cases in worldwide finance, education, health care,
government buildings and other important industries.
Specification
| No. of Cord | 4 Pairs | |
| Conductor | Material | BC |
| Construction | 23AWG 1/0.57 ± 0.008mm | |
| Insulation | Material | HDPE |
| Filler | / | |
| Shield | Material | / |
| Braiding | / | |
| Drain Wire | Material | / |
| Rip Cord | Nylon | |
| PE Cross | Material | Polyethy Lene |
| Construction | 4.4mm*4.4mm | |
| Jacket | Material | LSZH |
| O.D. | 6.2 ± 0.25mm | |
| Color | Customized | |
| Marking | Customized | |
| Insulation Resistance | Min. 5000 mega ohms-km at 20℃ | |
| Dielectric Test | 1000V DC /1 min ; No Breakdown | |
| Temperature Rating | 60℃ | |
| Operating Temperature | -20℃ ~ 80℃ | |
| Bend Radius | 4 x cable diameter | |
Applications
Packing
