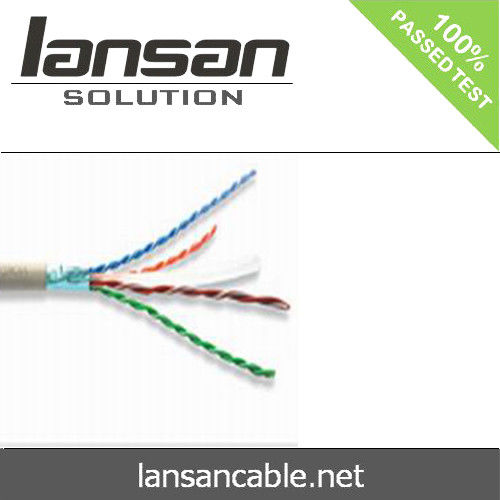

ETL HDPE 23AWG FTP Cat6 Lan Cable For Multi Media

Product Details

Place of Origin: China

Brand Name: OEM/ ODM/ Lansn

Certification: UL/ CE/ ETL/ ROHS/ ANATEL

Model Number: CAT6 FTP

Payment & Shipping Terms

Minimum Order Quantity: 50 Rolls

Price: Negotiation

Packaging Details: 305 meter/roll

Delivery Time: 12-15 Work Day

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal

Supply Ability: 5000 Rolls/Day

Get Best Price
Highlight:

23AWG FTP Cat6 Lan Cable

,

HDPE FTP Cat6 Lan Cable

,

ETL 4 Pair Network Cable

Conductor:
0.57mm Solid Copper
Name:
4 Pair Cat6 Cable
Cord:
4Pairs
Shiled:
Al Foil
Jacket:
ROHS
PE Cross:
Polyethy Lene
Rip Cord:
Nylon
Color:
Customized
Conductor:
0.57mm Solid Copper
Name:
4 Pair Cat6 Cable
Cord:
4Pairs
Shiled:
Al Foil
Jacket:
ROHS
PE Cross:
Polyethy Lene
Rip Cord:
Nylon
Color:
Customized
ETL HDPE 23AWG FTP Cat6 Lan Cable For Multi Media



Ethernet FTP Cat6 Lan Cable Quick Installation 4 Pair Network Cable For Multi Media



Description

  • LANSAN Intelligent Structure Cabling products include shielded and unshielded
    Category 5E, Category 6, Category 6A and Category 7 and all series fiber optic
    products.

  • Widely used at Voice data, Graphic image, Multi-media, Security monitoring and other
    data transmission.

  • Combined with keystone Jack Patch cords, and patch panel, it provides
    excellent and stable performance.

  • Lots of successful project cases in worldwide finance, education, health care,
    government buildings and other important industries.

Specification


  No. of Cord   4 Pairs
  Conductor   Material   BC
  Construction   23AWG 1/0.57 ± 0.008mm
  Insulation   Material   HDPE
  Filler   /
  Shield   Material   Aluminum Mylar Spirally Wrapped
  Braiding   /
  Drain Wire   Material   Aluminum Magnesium Metal
  Rip Cord   Nylon
  PE Cross   Material   Polyethy Lene
  Construction   4.4mm*4.4mm
  Jacket   Material   ROHS
  O.D.   7.2 ± 0.2mm
  Color   Customized
  Marking   Customized
  Insulation Resistance   Min. 5000 mega ohms-km at 20℃
  Dielectric Test   1000V DC /1 min ; No Breakdown
  Temperature Rating   60℃
  Operating Temperature   -20℃ ~ 80℃
  Storage Temp   -20℃ ~ 80℃



Feature



  • Fast and reliable connection
  • Twisted pairs with bright color for easy recognition
  • Ripcord and footmark for convenient use
  • Smooth jacket for easy pulling in tight space
  • Color in light grey, dark grey, blue, white or as per your requirement



Application


Ethernet, 100 Base-T, ATM, trunk cabling, widely apply to network wiring structure and transmission media, such as audio, video, digital communication, message and so on.
